Elmag Wave electromagnetic chuck for surface grinding
Elmag Wave electromagnetic chuck for surface grinding
Do you need help?
Product description
Detailed description:

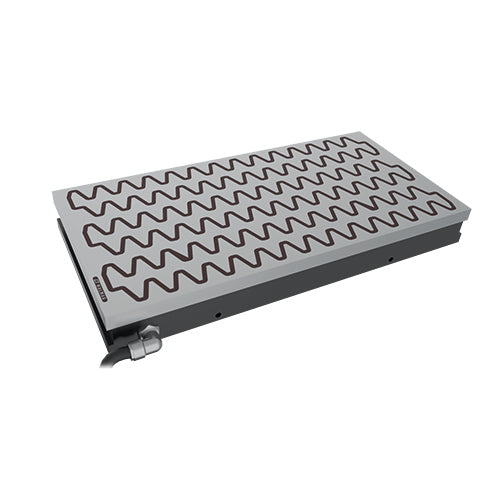

The Elmag Wave electromagnetic chuck is designed for heavy duty on industrial premises.The shifted layout of the poles (WAVE form) creates uniform distribution of the holding force both in longitudinal and transverse directions, which helps reduce shear forces during active grinding. During use, this electromagnet chuck demonstrates high stability, variability, accuracy, and a long life span.
Important parameters:
- Application: Grinding
- Technology: Electromagnet
- Holding force: 130 N/cm2
- Min. workpiece size: 120 x 40 x 20 mm
- Poles: Wave type
- Pole pitch: T40
- Regrinding limit: 8 mm
- Guarantee: 2 years
Additional information:
The Elmag Wave chuck is delivered with stop bars and the power supply cable as standard. We will be happy to help you select the control unit, just let us know. By request, it is possible to deliver another design of the electromagnetic chuck – dimensions, location of the outlet, power supply cable length, through-holes facilitating installation of the chuck on the machine table.
Use:
- Heavy and high-performance surface grinding
- Roughing primarily on vertical grinders with grinding segments
Scope of supply:
- Magnetic chuck
- Set of clamps
- Power supply cable
- Instructions for use
Parameters:

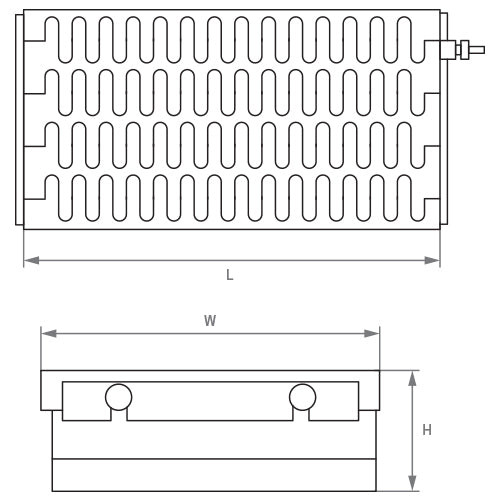

| Model | W (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| ELMGW200600 | 200 | 600 | 70 | 59 | ELMGW2001000 | 200 | 1000 | 80 | 113 | ELMGW2501000 | 250 | 1000 | 79 | 135 | ELMGW300500 | 300 | 500 | 70 | 74 | ELMGW300600 | 300 | 600 | 70 | 89 | ELMGW300800 | 300 | 800 | 70 | 119 | ELMGW3001000 | 300 | 1000 | 80 | 170 | ELMGW3001500 | 300 | 1500 | 80 | 254 | ELMGW400600 | 400 | 600 | 70 | 119 | ELMGW400700 | 400 | 700 | 70 | 138 | ELMGW400800 | 400 | 900 | 70 | 158 | ELMGW6001000 | 600 | 1000 | 80 | 347 | ELMGW6001500 | 600 | 1500 | 80 | 533 | ELMGW6001500 | 600 | 1500 | 80 | 689 |
