Product description
Detailed description:

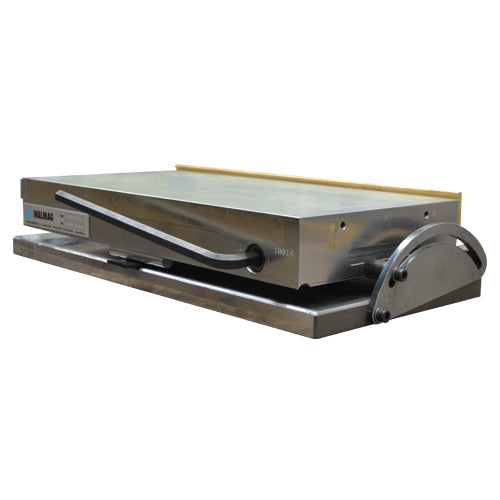

The Fixar simple sine table is a highly precise tool, which is intended for reliable workpiece clamping during precise angle grinding, electrical discharge machining and for measuring purposes. It allows the setting of angles using a gauge in the range of 0 – 45° with high accuracy. You set angles using end gauges based on the sine principle. The unique design of the bearing along with the hardened base plate and side guidance provide extreme precision even after a long period of use. The sine table is equipped with a Neomicro permanent magnetic chuck, which is simple and low maintenance.
Important parameters:
- Application: Grinding, measuring, EDM
- Technology: Permanent
- Holding force: 100 N/cm2
- Min. workpiece size: 4 x 4 x 1 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: T1.9 1.4+0.5 mm (steel/brass)
- Guarantee: 2 years
Additional information:
The Fixar simple sine table allows tilting either on the longitudinal or the transverse axis – depending on the model you choose. If you require tilting on both axes at the same time, have a look at the Fixar compound sine table.
Scope of supply:
- Sine table
- Allen keys
- Table for quick angle setting
- Instructions for use
Use:
- Accurate angle surface grinding
- Electrical discharge machining -EDM
- Measuring

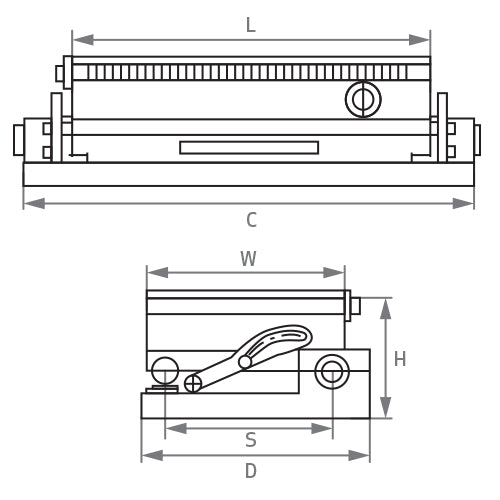

Parameters
| Model | W (mm) | L (mm) | H (mm) | C x D (mm) | S (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| SINES70140 | 70 | 140 | 67 | 130 x 140 | 55 | 7 |
| SINES130255 | 130 | 255 | 76 | 295 x 145 | 115 | 20 |
| SINES150250 | 150 | 250 | 79 | 290 x 165 | 135 | 20 |
| SINES150300 | 150 | 300 | 79 | 340 x 165 | 135 | 27 |
| SINES150350 | 150 | 350 | 87 | 390 x 165 | 135 | 34,5 |
| SINES150450 | 150 | 450 | 87 | 490 x 165 | 135 | 44 |
| SINES200400 | 200 | 400 | 88 | 440 x 215 | 185 | 52 |
| SINES300600 | 300 | 600 | 95 | 660 x 320 | 285 | 121 |
Documents for Download

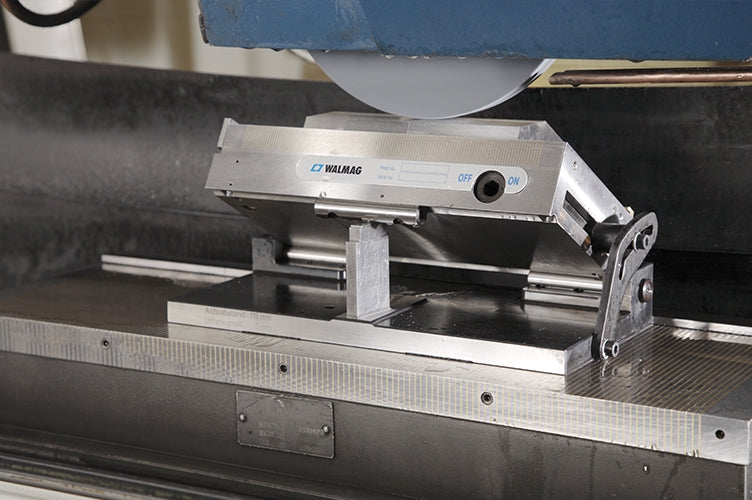

Precise angular grinding with permanent sine table Fixar
Robust construction with fine-pole adjustment for stable fixation
