Product description

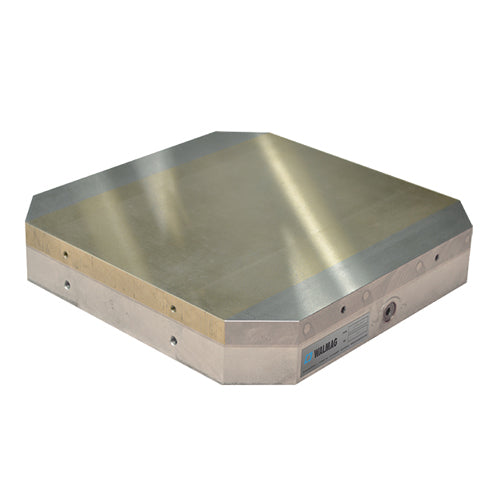

Detailed description:
The Neomicro permanent magnetic pallet chuck is ideal for precise grinding and electrical discharge machining of small and thin, as well as large parts. Its structure is low and waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate consisting of brass and steel lamellae ensures high stability and accuracy. The switching mechanism with gradual start makes it possible to control not only the holding force but also the magnetic field height. The influence of the magnetic field on the tool electrode during electrical discharge machining is thereby minimised.
Important parameters:
- Application: Grinding, EDM
- Technology: Permanent
- Holding force: 100 N/cm2
- Min. workpiece size: 4 x 4 x 1 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: T1.9 1.4+0.5 mm - steel/brass
- Guarantee: 2 years
Use:
- Precise surface grinding of small and thin, as well as large parts
- Also suitable for electrical discharge machining (EDM)
Scope of supply:
- Magnetic chuck
- Allen key
- Side stop blocks
- Instructions for use

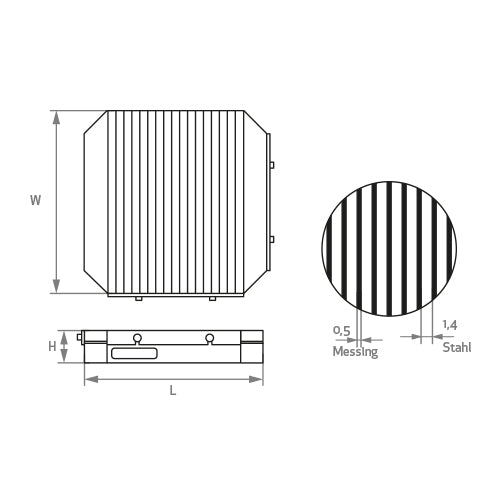

Parameters
| Model | W (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| NEOC240240P | 240 | 240 | 63,5 | 21,5 |
| NEOC2802800P | 280 | 280 | 63,5 | 29 |
| NEOC320320P | 320 | 320 | 63,5 | 38 |
Documents for Download
Neomicro magnetic chuck for efficient automation and EDM machining
Extra fine lamellar pole spacing for maximum precision without deformation
