Neospark permanent magnetic chuck for electrical discharge machining
Neospark permanent magnetic chuck for electrical discharge machining
Do you need help?
Product description
Detailed description:

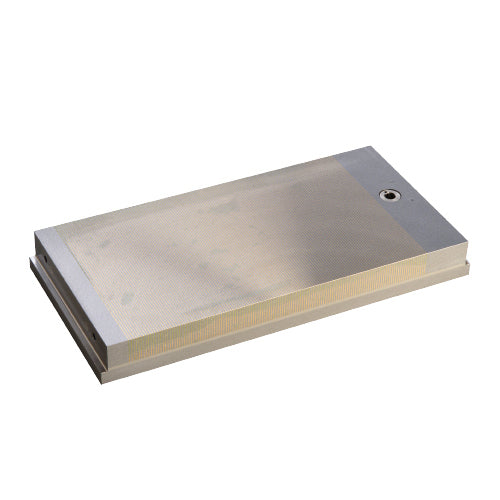

The Neospark magnetic chuck with low structural height is primarily developed for electrical discharge machining but it is also suitable for precise surface grinding of smaller workpieces. The high holding force of the double magnetic system ensures clamping stability. Operators of the chuck will appreciate the very easy operation from the upper side of the magnet and the minimum maintenance.
Important parameters:
- Application: EDM
- Technology: Permanent
- Holding force: 100 N/cm2
- Min. workpiece size: 4 x 4 x 1 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: T1,9 1,4 + 0,5 mm (steel/brass)
- Guarantee: 2 years
Scope of supply:
- Magnetic chuck
- Set of clamps
- Allen key
- Certificate
- Instructions for use
Use:
- Electrical discharge machining EDM
- Possibility of immersion in dielectric liquid Precise grinding of very small and thin parts
Parameters

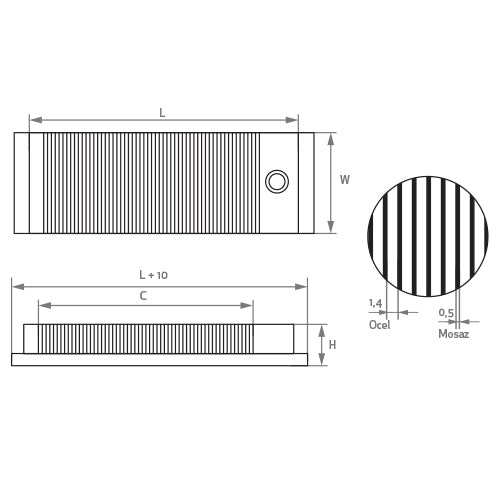

| Model | W (mm) | L (mm) | H (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|---|
| NEOK100175 | 100 | 175 | 32 | 120 | 5 |
| NEOK130255 | 130 | 255 | 32 | 200 | 9 |
| NEOK150150 | 150 | 150 | 35 | 95 | 7 |
| NEOK150300 | 150 | 300 | 35 | 245 | 13 |
| NEOK150350 | 150 | 350 | 35 | 295 | 15 |
| NEOK150450 | 150 | 450 | 35 | 395 | 19 |
| NEOK200400 | 200 | 400 | 35 | 342 | 23 |
Neospark Permanent Clamping System for Precision Electrical Discharge Machining (EDM)
Extra fine cross-pole alignment and 100% dielectric strength
