Product description
Detailed description:

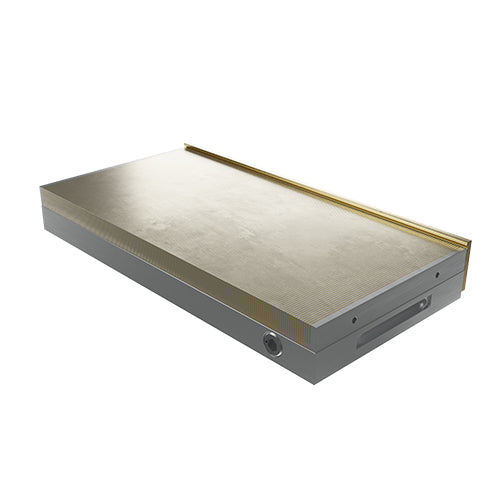

The Neomicro permanent magnetic chuck is ideal for precise grinding of small and thin as well as large pieces or for electrical discharge machining (EDM).

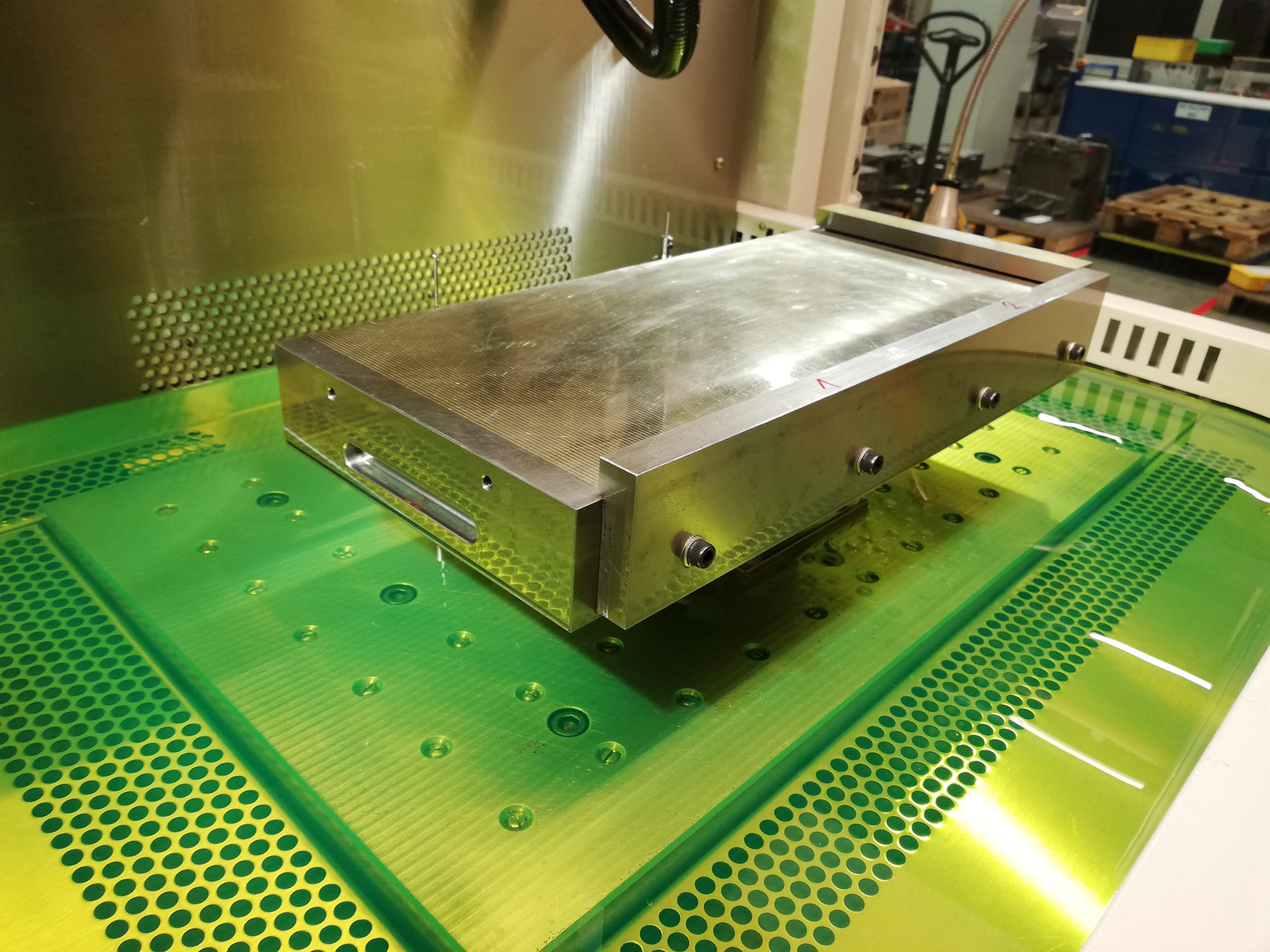

Its structure is waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate composed of brass and steel lamellae ensures high stability, accuracy, and efficiency of clamping using the maximum concentration of magnetic force into the workpiece.
A long life span is ensured by the top plate with a regrinding limit up to 7 mm.
Important parameters:
- Application: Grinding, EDM
- Technology: Permanent
- Holding force: 100 N/cm2
- Min. workpiece size: 4 x 4 x 1 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: T1.9 1.4+0.5 mm - steel/brass
- Guarantee: 2 years
Use:

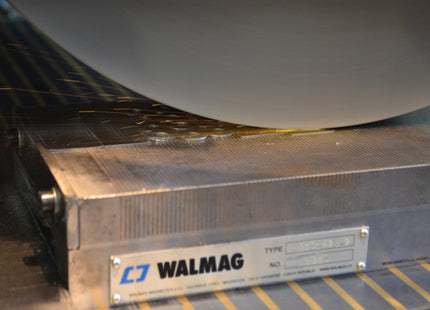

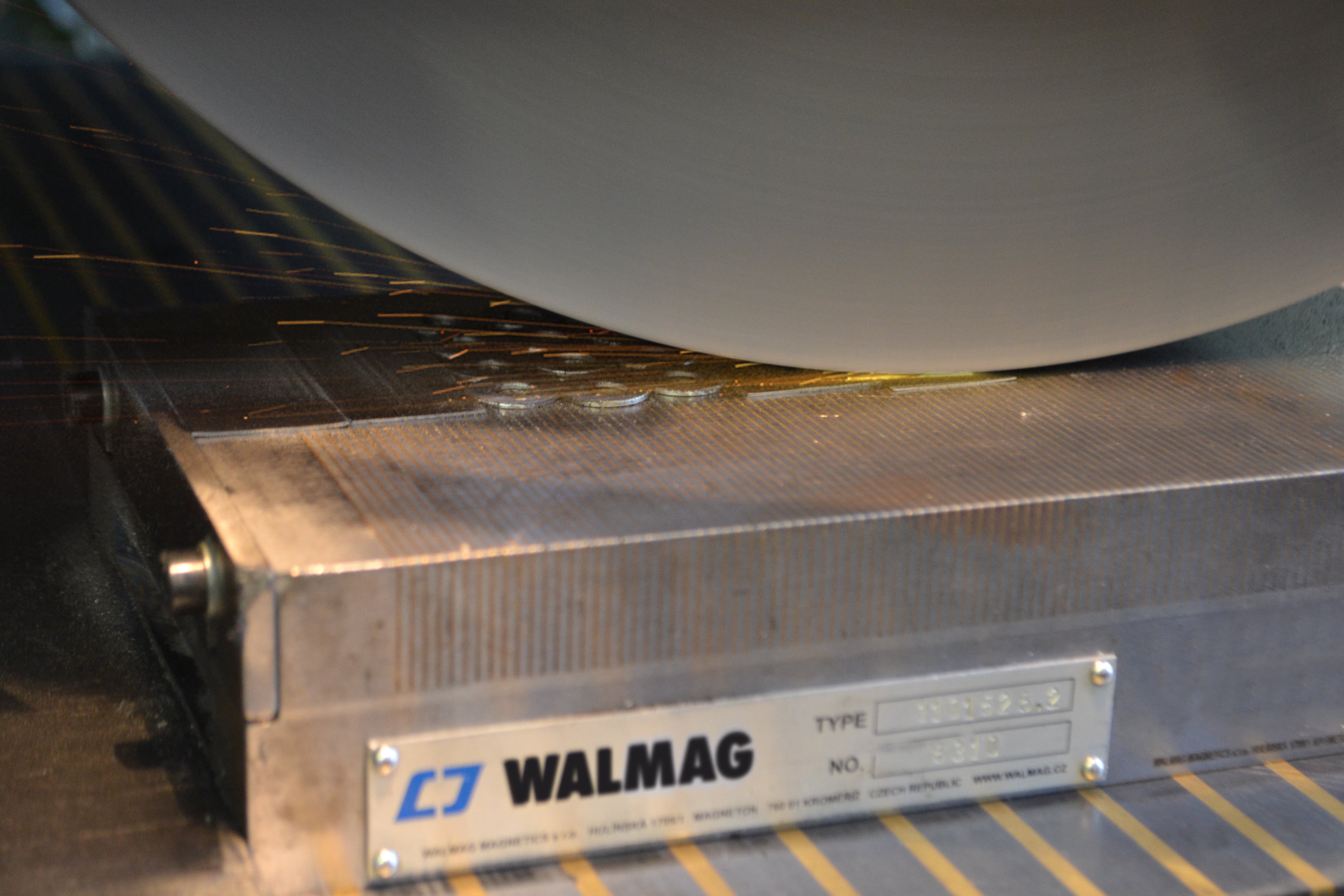

- Precise surface grinding of small and thin, as well as large parts

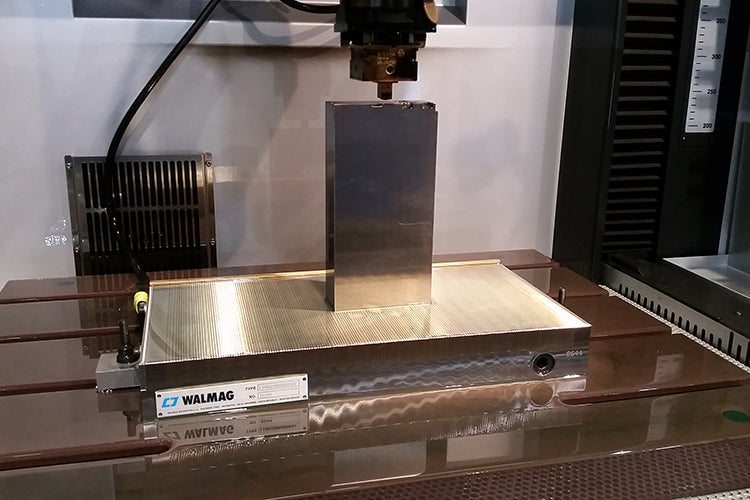

- Also suitable for electrical discharge machining (EDM)
Scope of supply:
- Magnetic chuck
- Set of clamps
- Allen key
- Rear and side stop blocks
- Certificate
- Instructions for use
Parameters

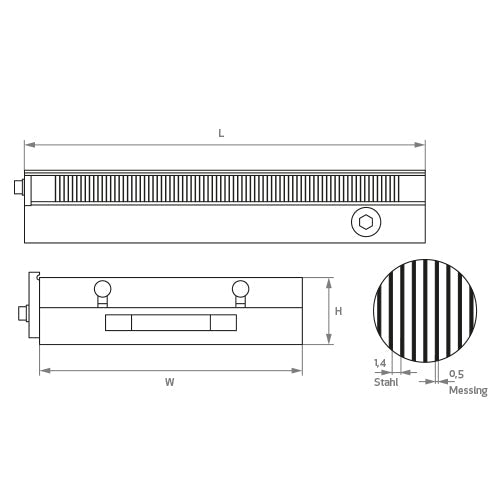

| Model | W (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| NEOC100175 | 100 | 175 | 49 | 7 |
| NEOC100250 | 100 | 250 | 49 | 10 |
| NEOC130255 | 130 | 255 | 49 | 13 |
| NEOC150250 | 150 | 250 | 51 | 15 |
| NEOC150300 | 150 | 300 | 51 | 18 |
| NEOC150350 | 150 | 350 | 51 | 22 |
| NEOC150400 | 150 | 400 | 51 | 25 |
| NEOC150450 | 150 | 450 | 51 | 28 |
| NEOC200400 | 200 | 400 | 51 | 34 |
| NEOC200450 | 200 | 450 | 51 | 37 |
| NEOC200500 | 200 | 500 | 51 | 41 |
| NEOC200600 | 200 | 600 | 51 | 49 |
| NEOC250500 | 250 | 500 | 56 | 56 |
| NEOC300600 | 300 | 600 | 56 | 81 |
Documents for Download
Neomicro permanent magnetic chuck for fine precision grinding
Extra fine polishing and uncompromising holding power
Robust waterproof construction and long lifespan
