Product description
Detailed description:

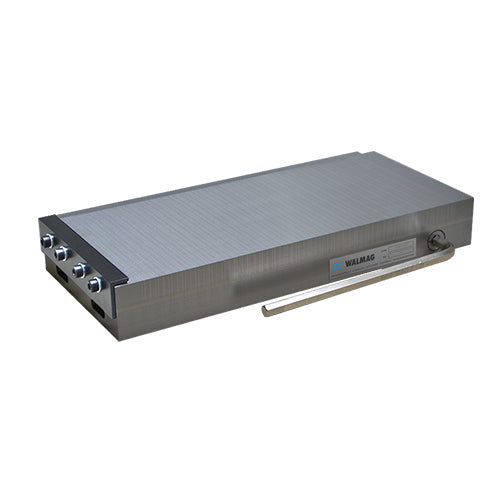

Neodymax ranks among the strongest permanent magnetic chucks in our range. Heavy holding force up to 120 N/cm2 helps clamp the parts during machining efficiently. This is due to the double neodymium magnetic system capable of exerting a high holding force and retaining a low chuck weight.
The top plate is made of very durable material and provided with transverse combined poles with a pitch of 5/1/5/1/2/1 mm (steel/stainless steel).
Consequently, Neodymax is suitable for workpiece clamping during precise surface grinding when it is no problem to clamp small and thin parts as well as much bigger components. The chuck can also be used for light milling operations.
Thanks to its waterproof design, the chuck can be immersed in dielectric liquid during EDM machining.
Important parameters:
- Application: Milling, grinding, EDM
- Technology: Permanent
- Holding force: 120 N/cm2
- Min. workpiece size: 10 x 10 x 5 mm
- Poles: Transverse
- Regrinding limit: 6 mm
- Pole pitch: 15 mm, further refined 5/1/5/1/2/1 steel/stainless steel
- Guarantee: 2 years
Scope of supply:
- Magnetic chuck
- Rear and side stop blocks
- Allen key
- Instructions for use
Use:
- Precise grinding of small and thin pieces up to large components
- Light surface milling
Parameters

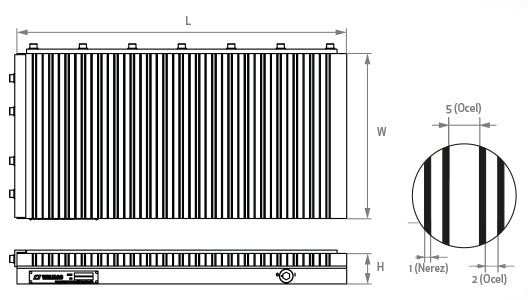

| Model | W (mm) | L (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|
| NEOD150300 | 150 | 300 | 54 | 20 |
| NEOD150450 | 150 | 450 | 54 | 30 |
| NEOD200450 | 200 | 450 | 54 | 40 |
| NEOD250380 | 250 | 380 | 56 | 40 |
| NEOD300600 | 300 | 600 | 56 | 78 |
Documents for Download
Neodymax permanent magnetic chuck for peak precision in grinding
Fine transverse pole pitch for reliable clamping of small and large workpieces
Robust and perfectly sealed construction with a long service life
