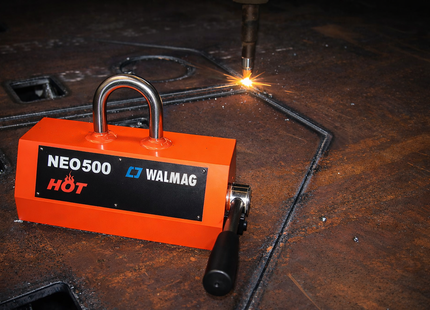

Neo Hot permanent magnet
Neo Hot permanent magnet
Do you need help?
Product description

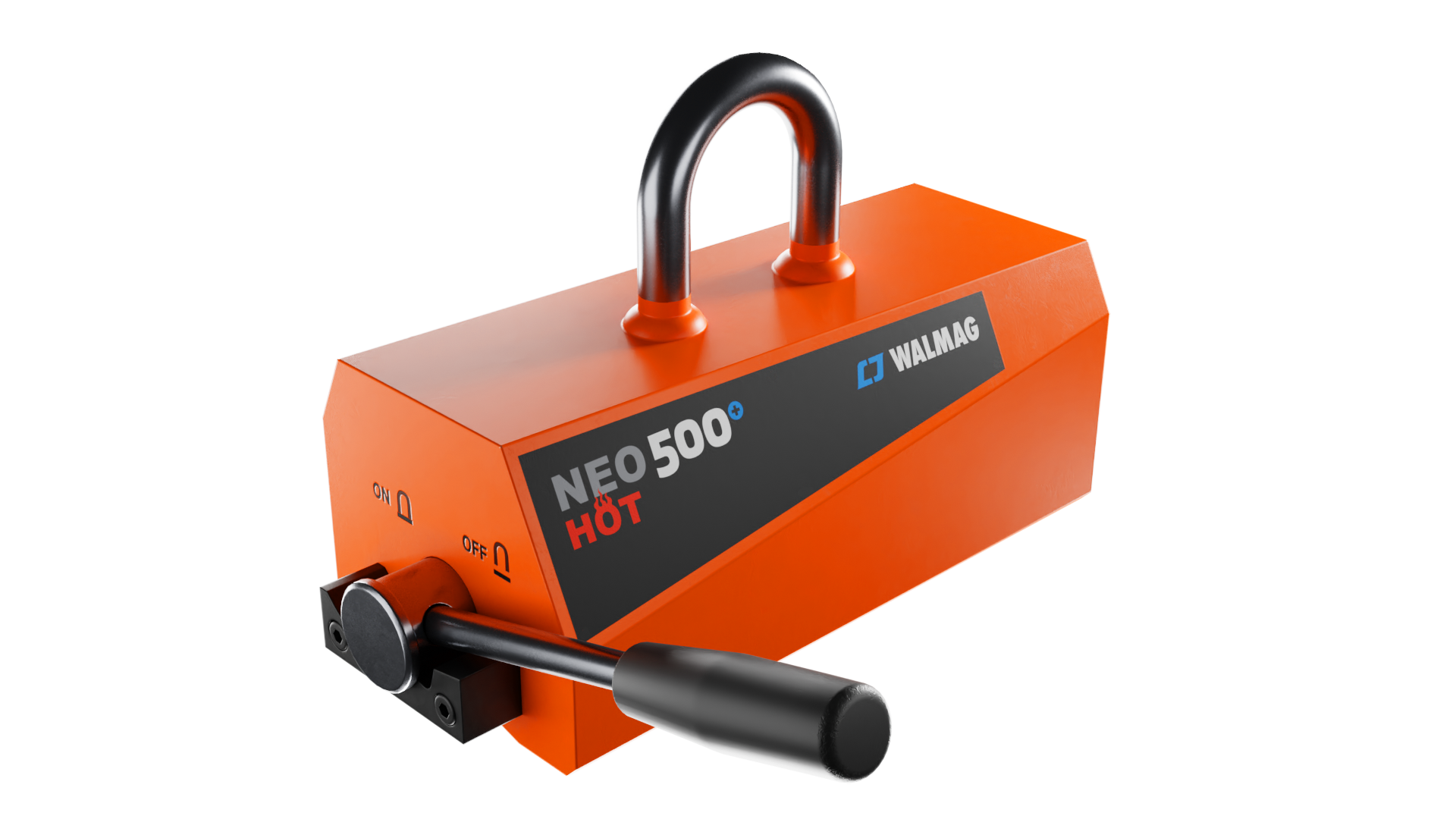

The Neo Hot permanent load-handling magnet is a high-temperature variant of the tried-and-tested Neo range. It is designed for handling ferromagnetic materials where the load temperature exceeds the capabilities of standard permanent magnets.
Thanks to special magnetic materials, it enables the safe handling of materials at temperatures of up to 180 °C without compromising on safety or operator comfort.
Like other magnets in the Neo range, it is equipped with the Easy Switch system for convenient one-handed operation. Each magnet undergoes testing using the Air Gap Test method, which simulates real-world conditions and verifies its safe operation. Its robust construction and safety rating of 3+ in accordance with EN 13155 ensure reliable operation even in demanding industrial environments.
Unique features:
- Easy Switch: The ergonomic control lever allows for quick and convenient switching of the magnet on and off, even during frequent use.
- Air Gap Test: Each magnet is tested using an air gap, which simulates real-world operating conditions and verifies safe operation.
- Stainless steel lifting eye: The durable stainless steel lifting eye ensures a long service life even in demanding industrial environments.
- Safety factor 3+: The magnet complies with the requirements of standard EN 13155 and provides a high level of safety during handling.
- Capacity table directly on the magnet: Load capacities and operating parameters are always easily accessible directly on the unit.
- Compact design: High load capacity combined with low weight facilitates handling and expands the range of applications.
- 5-year warranty: We provide a 5-year warranty on the magnetic system.
Key parameters
- Applications: Lifting and handling of ferromagnetic materials
- Technology: Permanent magnet
- Lifting capacity for flat material: up to 2,000 kg
- Lifting capacity for round material: up to 1,000 kg
- Maximum material temperature: 180 °C
- Safety factor: 3+ in accordance with EN 13155
- Warranty on the magnetic system: 5 years
Applications

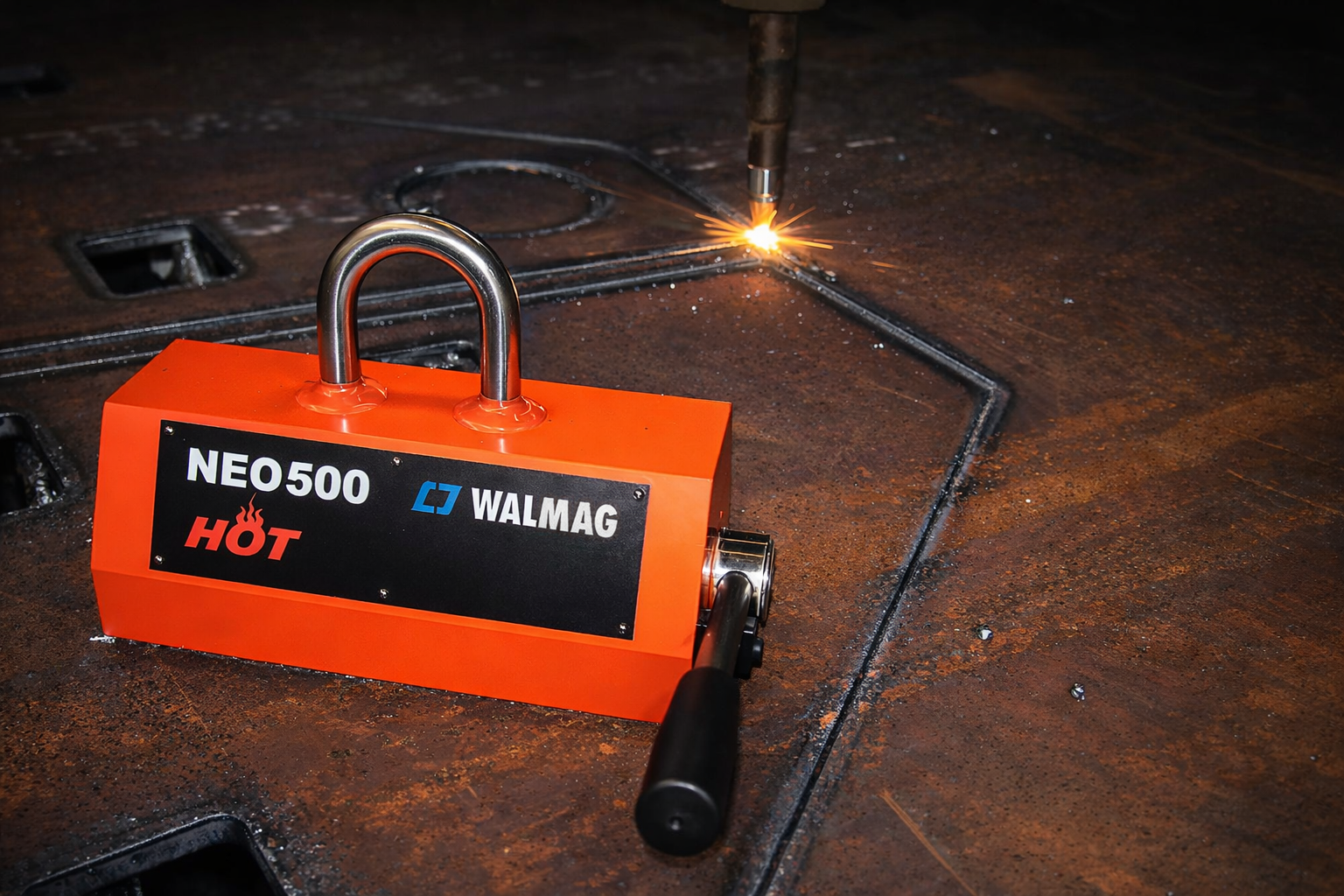

- Handling of hot cut-to-size sheets, forgings and castings
- Handling of heated sheet metal, sections and structural components
- Operations involving higher material temperatures
- Handling of both flat and circular workpieces
- Loading, unloading and moving of material in production
Contents of the package
- Neo Hot permanent magnet
- Operating instructions
- Test certificate
Parameters

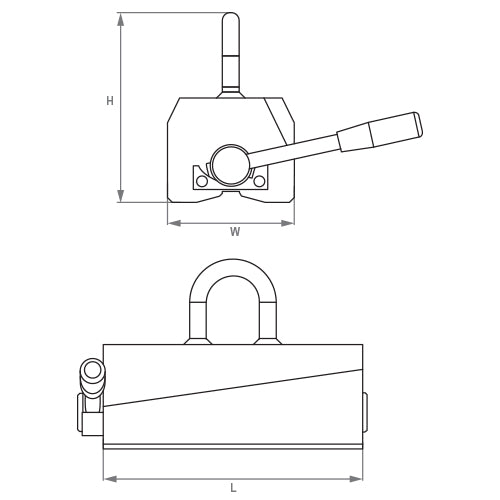

| Model | W (mm) | L (mm) | H (mm) | Eye diameter (mm) | Weight (mm) | Max. tested capacity (kg) | Workload limit flat materials (kg) | Workload limit round materials (kg) | Min/max diameter (mm) |
|---|---|---|---|---|---|---|---|---|---|

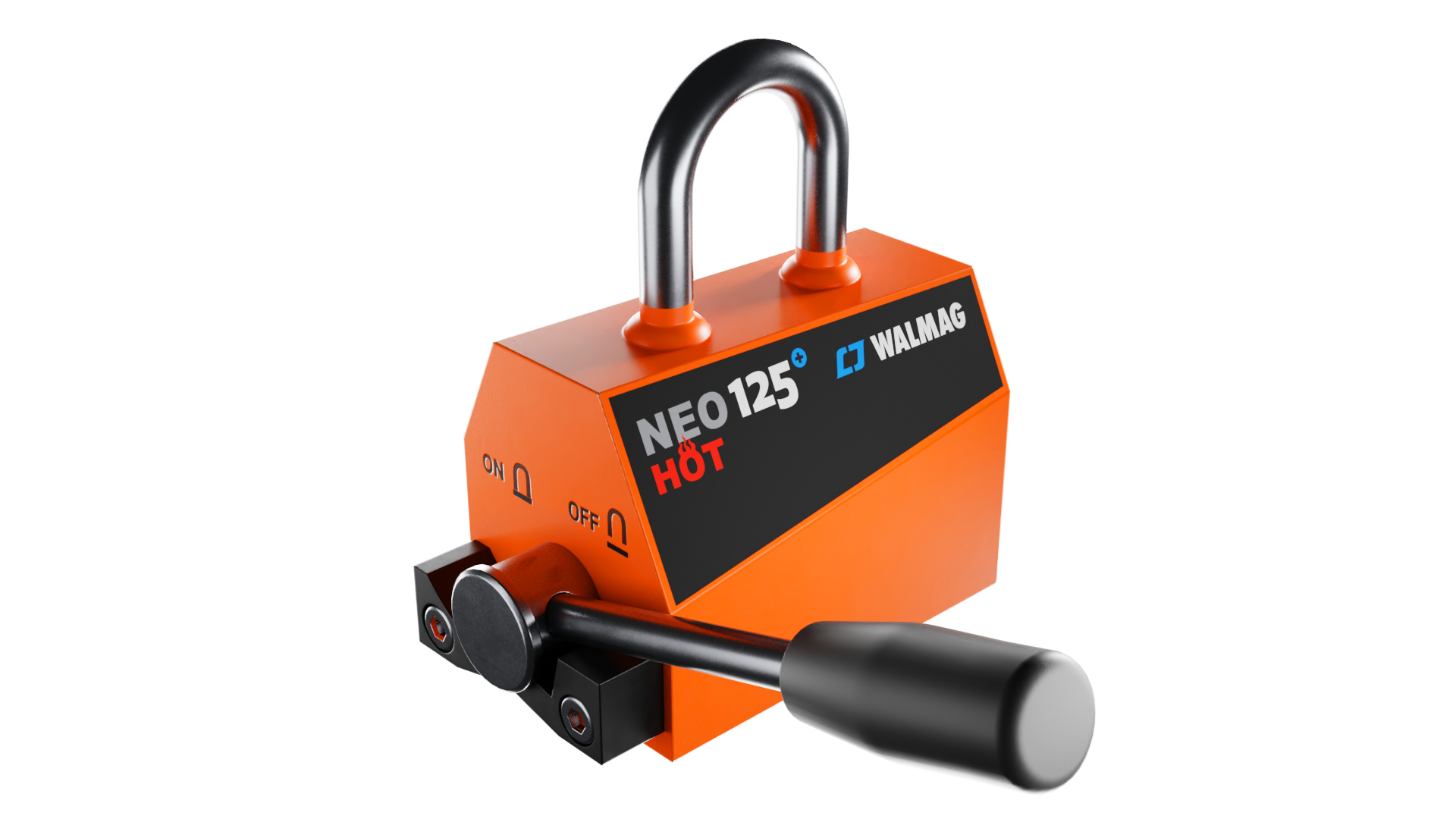

| NEOL125H | 60 | 93 | 120 | 10 | 3 | 450 | 125 | 40 | 50/100 |

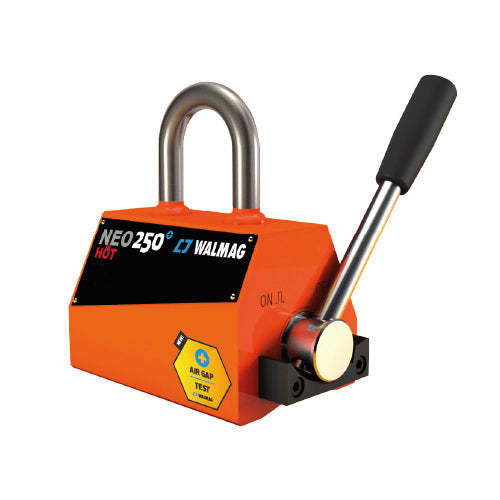

| NEOL250H | 100 | 152 | 180 | 16 | 10 | 800 | 250 | 125 | 60/200 |
| NEOL500H | 120 | 246 | 180 | 20 | 21 | 1600 | 500 | 250 | 65/270 |

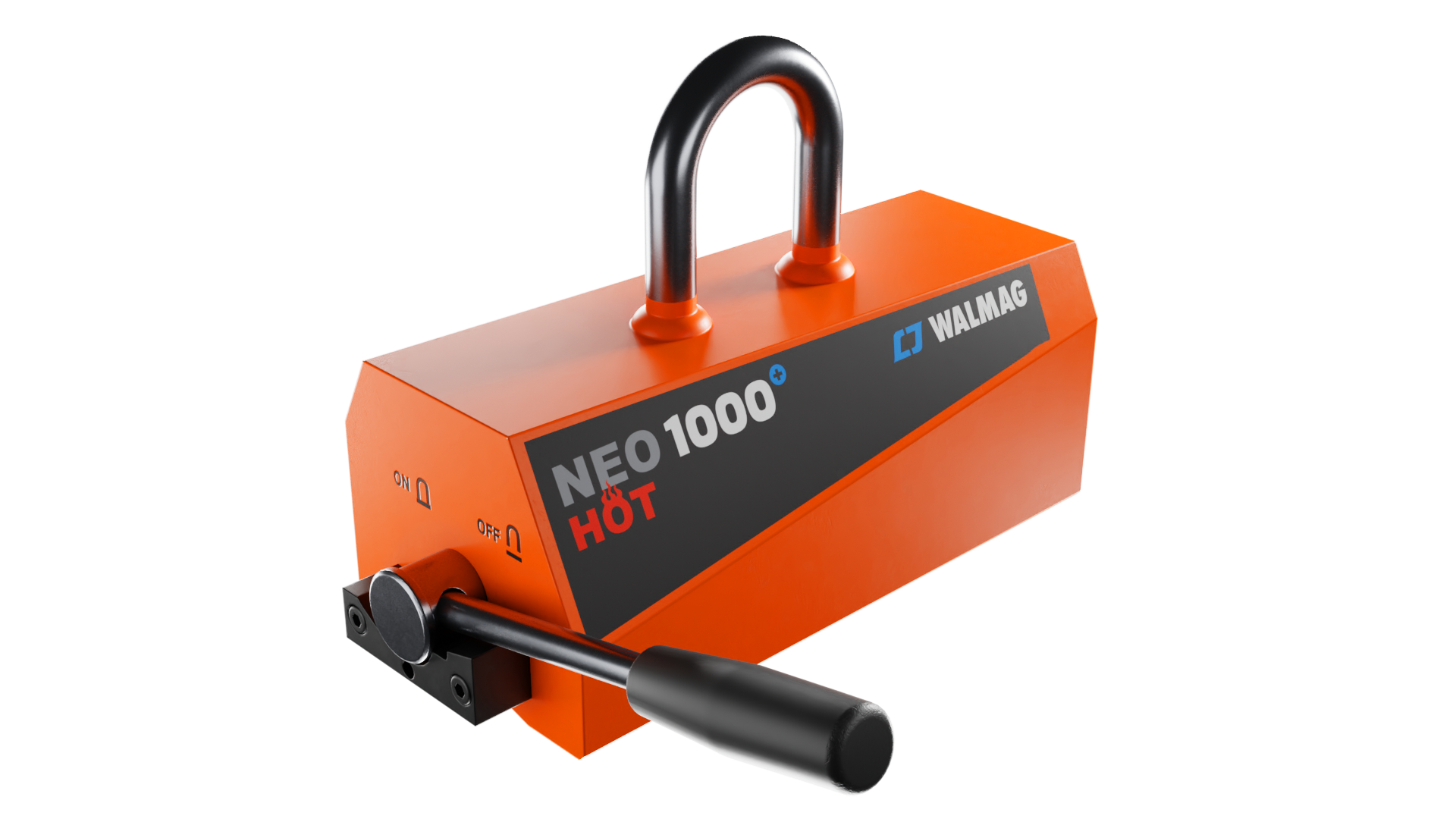

| NEOL1000H | 146 | 306 | 236 | 20 | 40 | 3200 | 1000 | 500 | 100/300 |

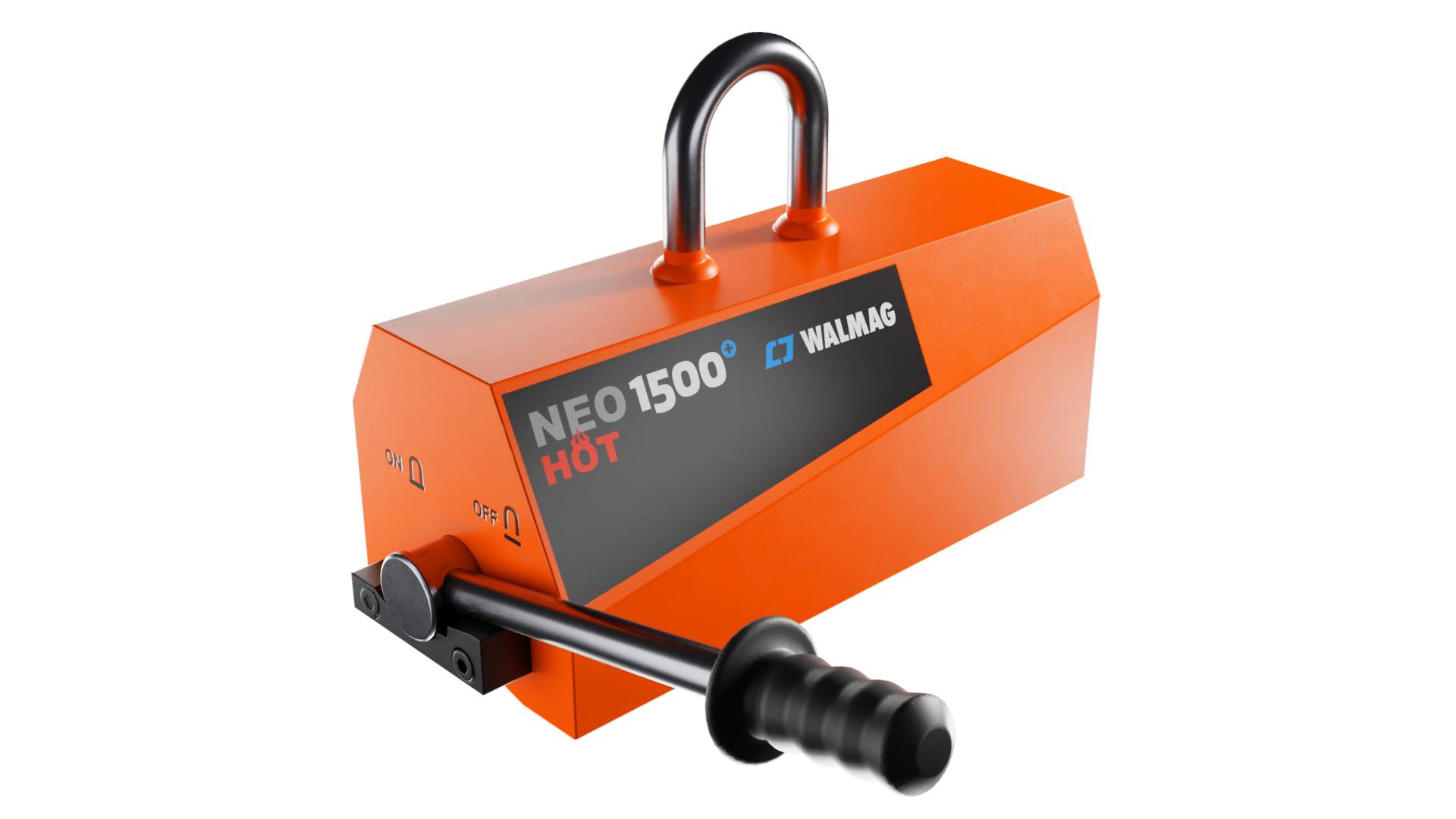

| NEOL1500H | 165 | 374 | 273 | 20 | 69 | 4700 | 1500 | 750 | 150/350 |

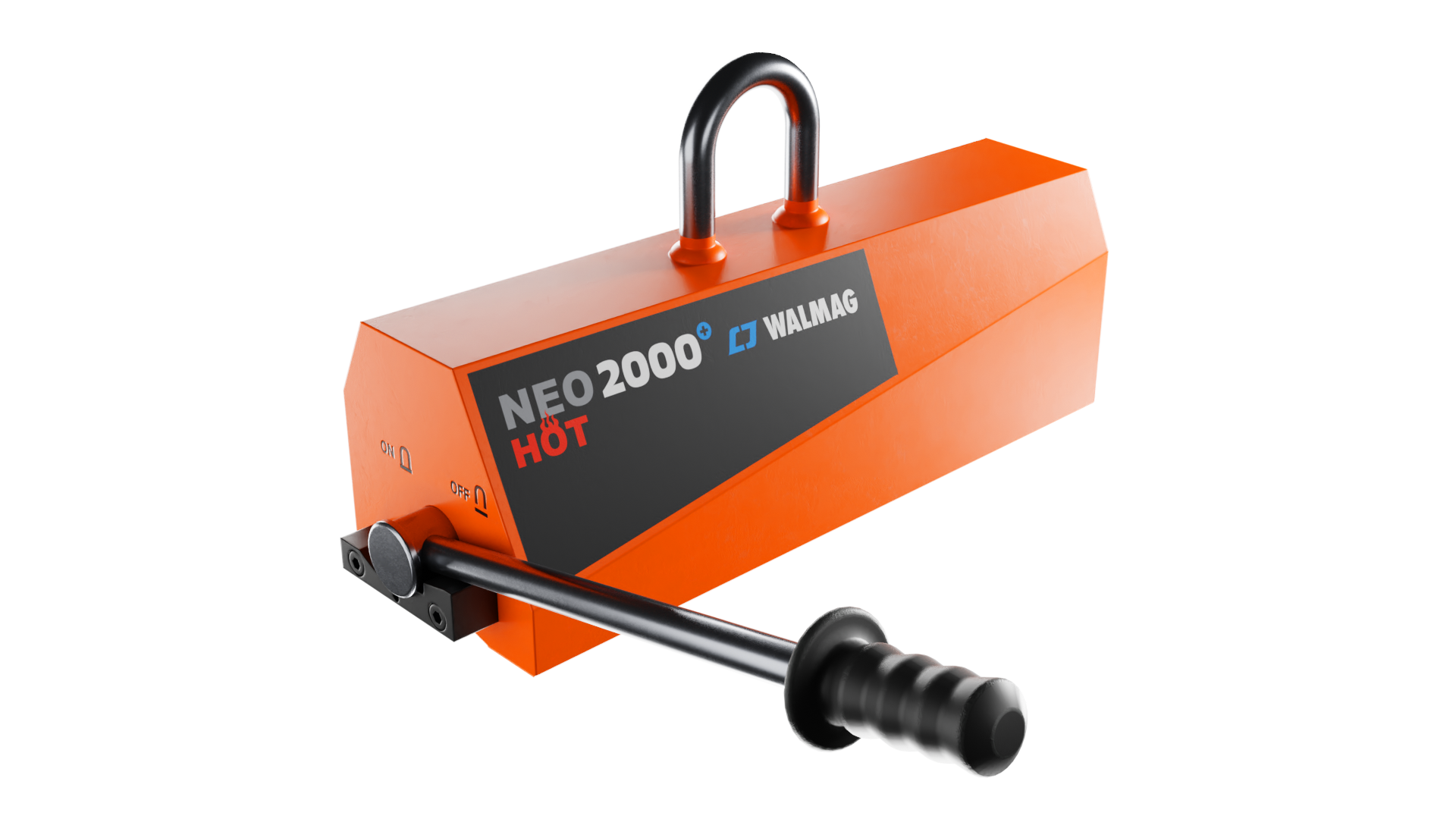

| NEOL2000H | 165 | 478 | 273 | 20 | 90 | 6200 | 2000 | 1000 | 150/350 |
Documents for Download
Extreme durability even at temperatures up to 180 °C
Easy Switch for simple control
Air Gap test
Safety Factor 3+
Our bestseller and a 5-year warranty on the magnetic system
Do you need help?
Walmag products are in companies such as
Why Walmag?
We've been manufacturingmagnets in Czechia since 1991
We manufactured90,000+ magnets
We service magnetsdirectly in Kroměříž
Our magnets are in morethan 61 countries worldwide
Frequently Asked Questions (FAQ)
Are your products made in the Czech Republic?
Yes, the entire process – from in-house development through design, production, to final assembly and testing – takes place directly in our plant in Kroměříž. This gives us full control over quality and allows us to flexibly tailor products to specific customer requirements.
What is the difference between permanent, electromagnetic, and electro-permanent systems?
Permanent Magnets: Operate without electricity, activated mechanically by a lever. They are safe, mobile, and maintenance-free.
Electromagnets: Generate a magnetic field using coils powered by mains electricity. They possess immense strength, can clamp uneven surfaces, and allow force regulation, but require a constant power supply and backup sources.
Electro-permanent Magnets: Combine the advantages of both systems. They only require electric current for a fraction of a second for activation (magnetization) and deactivation. During operation itself, they do not need current, making them extremely safe even in the event of a power outage and preventing overheating.
Can your lifting magnets also be used for handling materials at high temperatures?
Conventional permanent magnets lose their strength at temperatures above 80 °C. However, for operations with higher temperatures, we offer special series (e.g. HOT lifting magnets) that can safely handle materials with temperatures up to 180 °C.
Why is it necessary to use a demagnetizer after machining?
Ferromagnetic materials retain residual magnetism after being exposed to a magnetic field (e.g., when clamped onto a magnetic chuck). This causes metal chips and dust to stick to the workpiece, which can damage tools or complicate further processing (e.g., painting, welding). Demagnetizers reliably remove this residual magnetism.
Do you provide service and revisions for your products?
Yes, for all our technologies, including older BUX, Walker, and Pilana brand products, we provide complete warranty and post-warranty service, repairs, overhauls, and original spare parts. We also perform mandatory periodic certifications, inspections, and load capacity testing of lifting magnets.
Do you also offer staff training?
Yes. As part of the delivery of our magnetic applications and large systems, we provide professional operator training to ensure that working with magnets is as efficient and safe as possible.
How can I contact you if I am interested in a tailored solution?
You can contact us by e-mail at info@walmag.cz, by phone at +420 573 341 641, or directly contact our regional sales managers for the Czech Republic and abroad, whose contact details can be found in the Contact section of our website.
How is heavy goods (e.g. clamping plates) delivered?
Due to the higher weight of our products, we cooperate with specialized pallet and parcel carriers who ensure safe handling.
How is the safety of lifting magnets purchased from the e-shop guaranteed?
All lifting magnets comply with the strict ČSN EN 13155 standard and operate with a safety factor of 3+. This means that in a pull-off test (the so-called Air Gap test, which simulates a real air gap/dirt in operation), the magnet can lift more than three times its declared maximum load capacity.
Where can I find user manuals and technical documentation?
Technical sheets, catalogues, and operating instructions for individual products are available either on the product's page or upon request.
