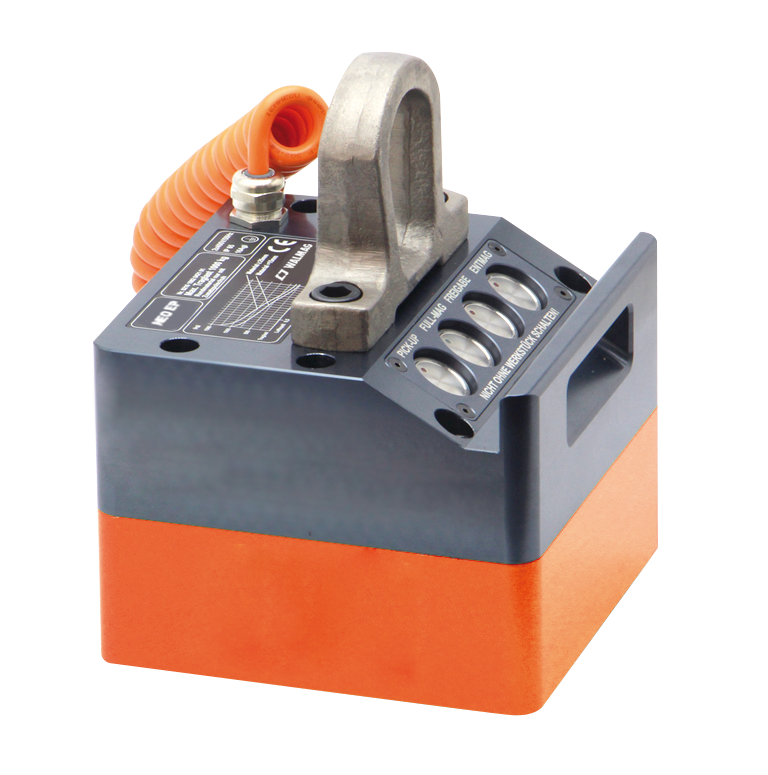

Product description

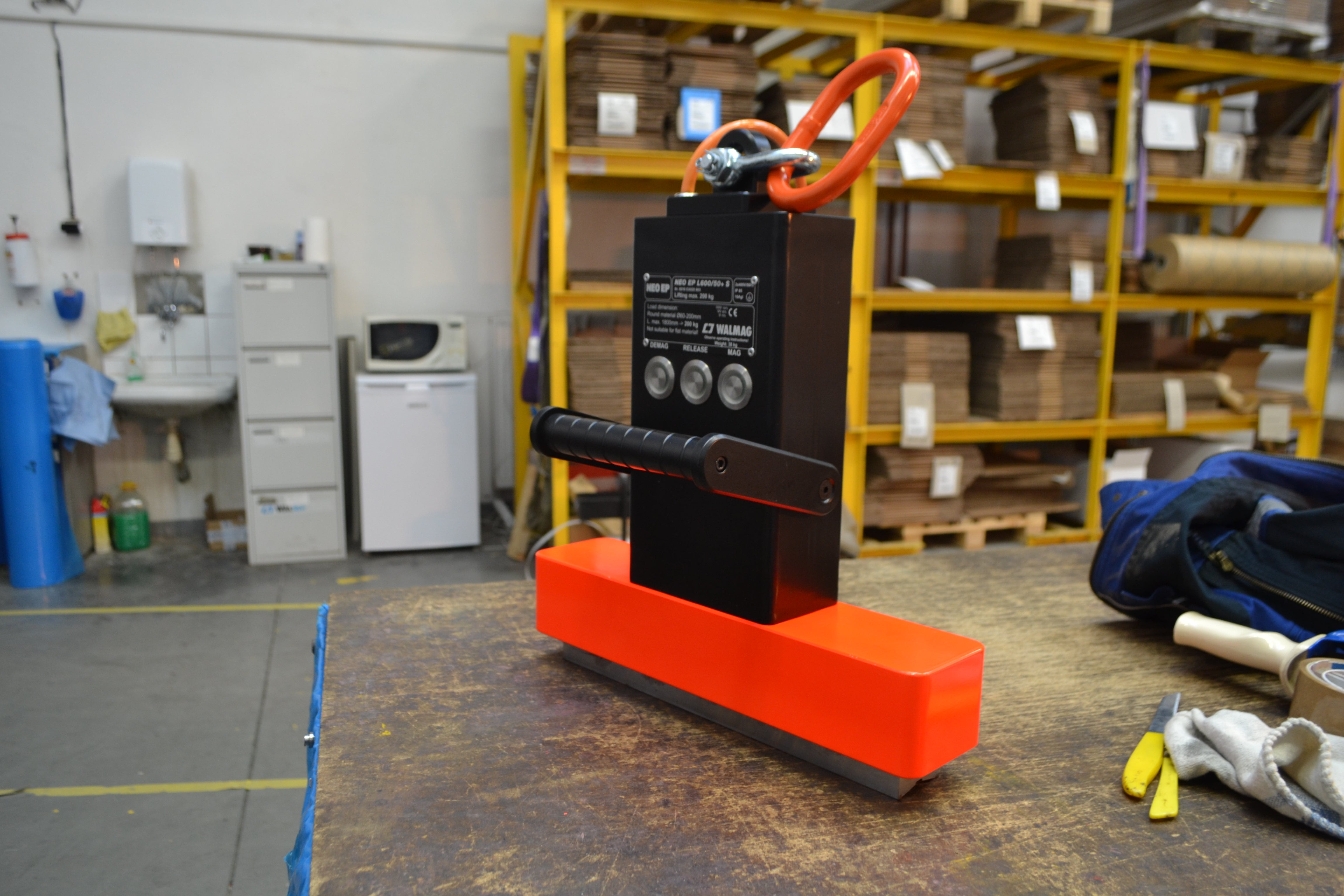

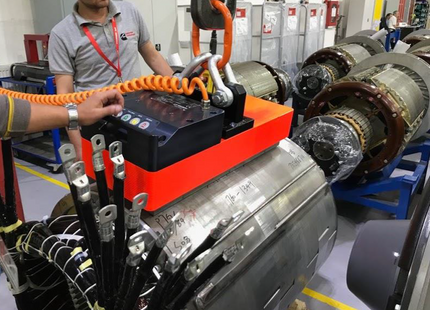

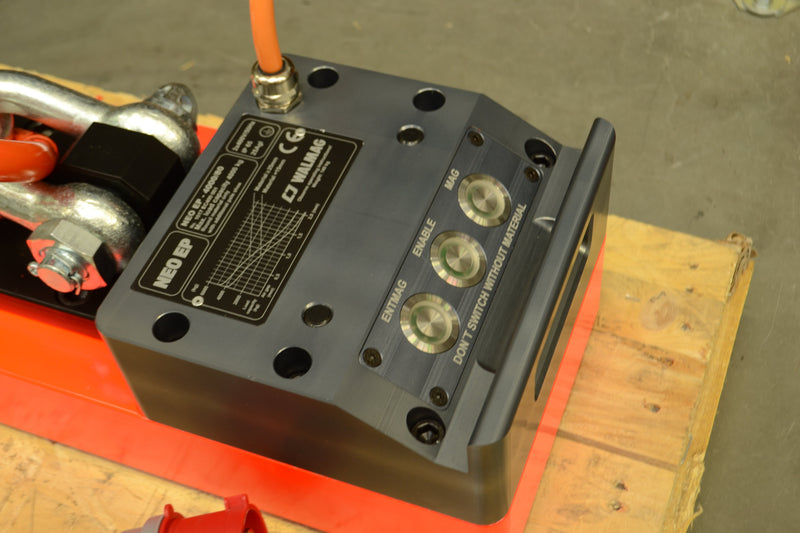

Neo EP electro-permanent lifting magnets offer an effective solution for the regular handling of sheet metal, cut-to-size parts, castings, forgings and other ferromagnetic materials. The magnet is activated and deactivated electrically via a control panel; however, holding the load does not require a continuous power supply.
This technology combines the advantages of permanent magnets and electromagnets – low energy consumption, high operational safety and convenient control without the need for mechanical switching.

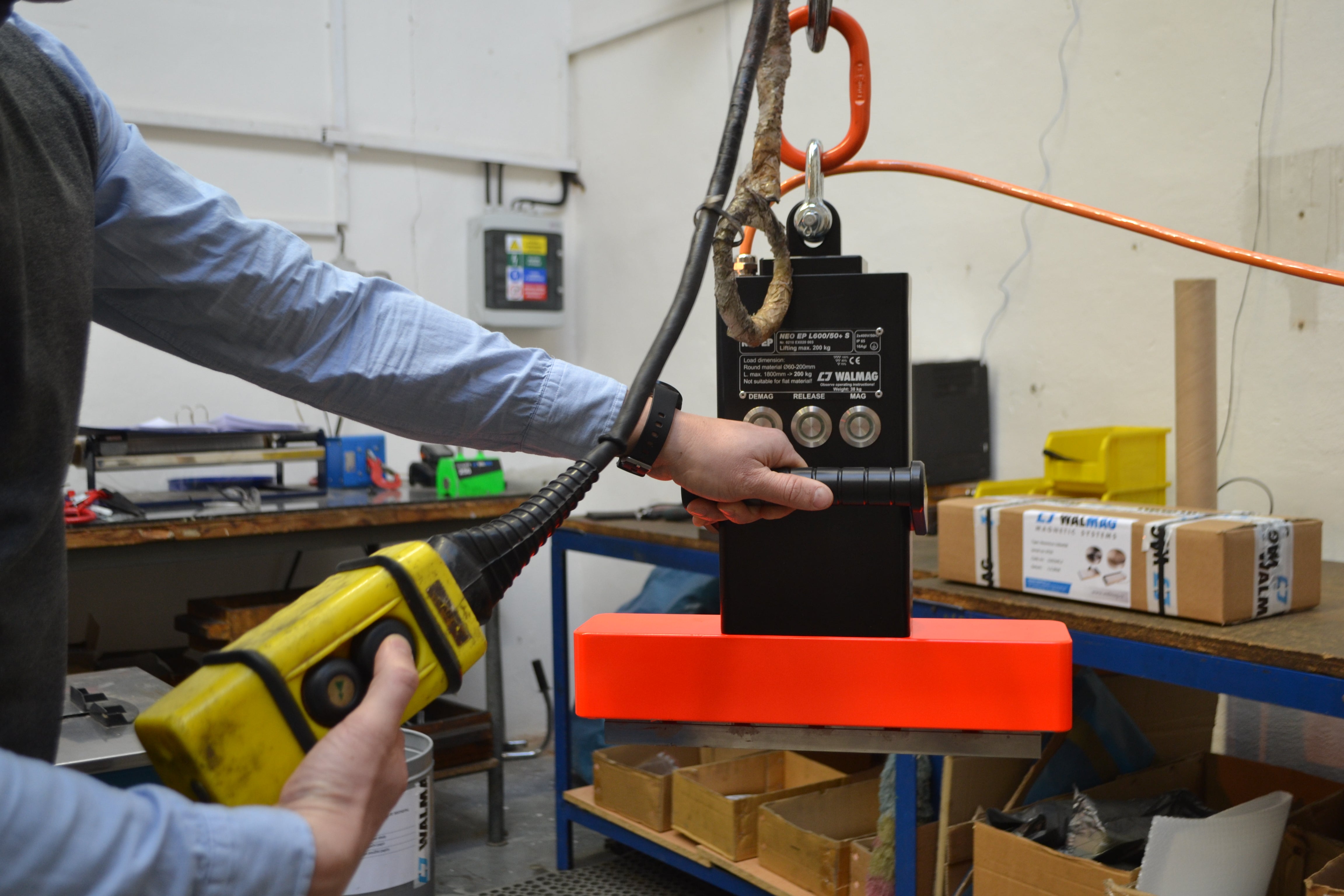

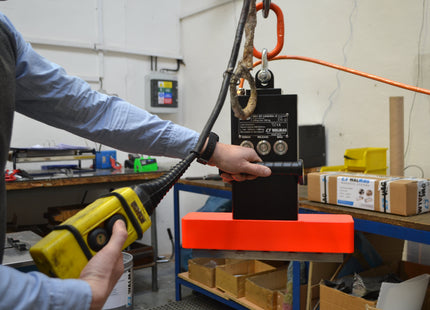

On request, the magnet can be fitted with a remote control or magnetic force regulation for handling individual metal sheets.
Key parameters:
- Applications: Lifting and handling of ferromagnetic materials
- Technology: Electro-permanent magnet
- Lifting capacity for flat material: up to 4,000 kg
- Maximum material temperature: 80 °C
- Duty cycle: 100%
- Safety factor: 3:1
- Warranty: 1 year
Applications:
- Handling of sheet metal, cut-to-size pieces and steel plates

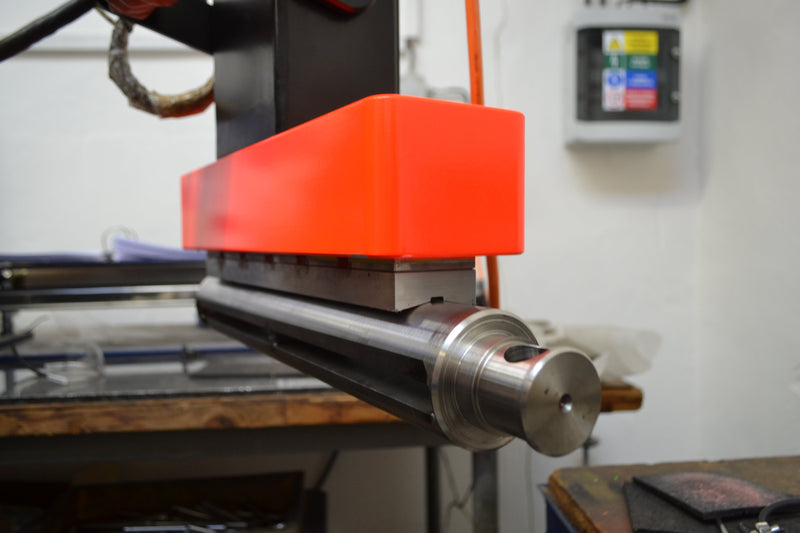

- Handling of forgings, castings and machine parts
- Operation of cutting, shearing and machining workstations
- Frequent and repetitive handling in manufacturing facilities
- Steelworks, warehouses and service centres
- Loading and unloading of ferromagnetic materials
Package contents:
- Neo EP magnet
- Test certificate
- Power cable
- Operating instructions
Parameters
| Model | W (mm) | L (mm) | H (mm) | Number of poles | Pole structure | Clamping surface (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|

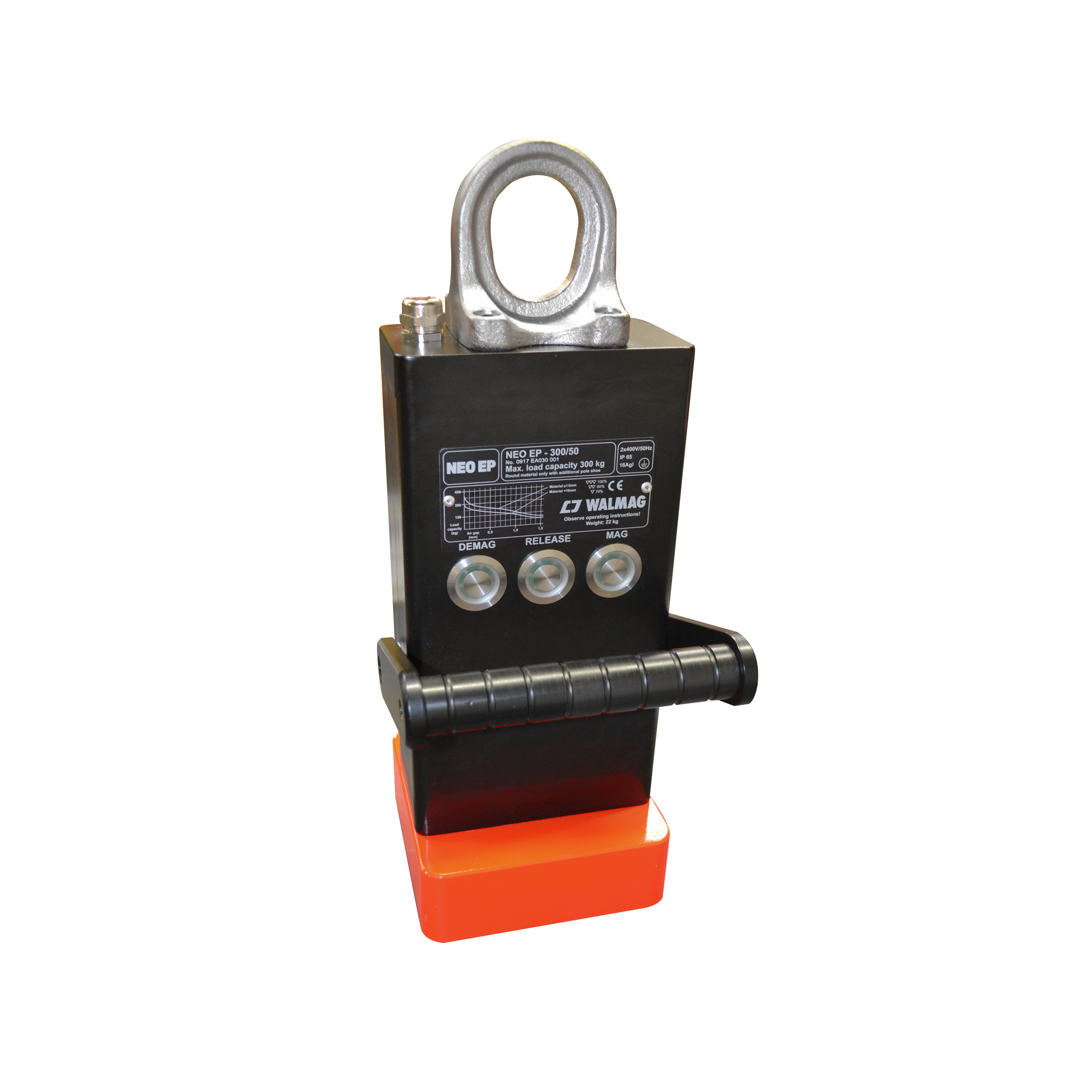

| NEOSQ300 | 164 | 164 | 420 | 4 | 50 x 50 | 116 x 116 | 23 |

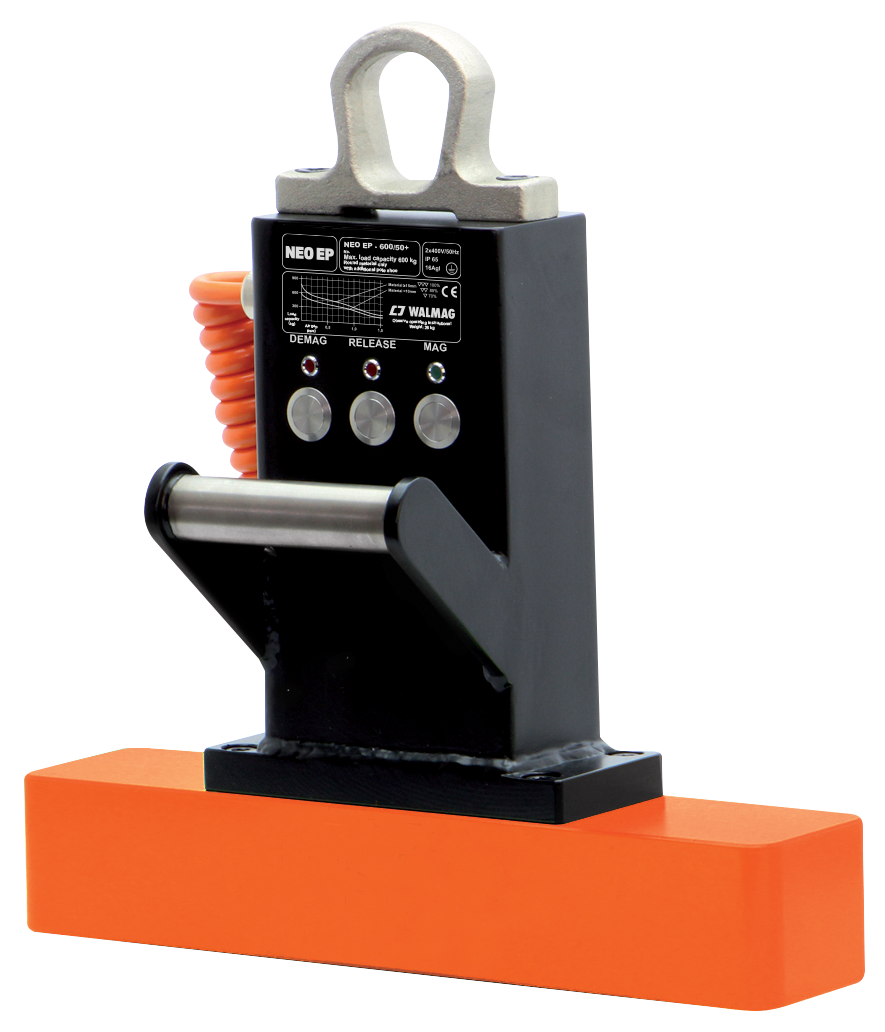

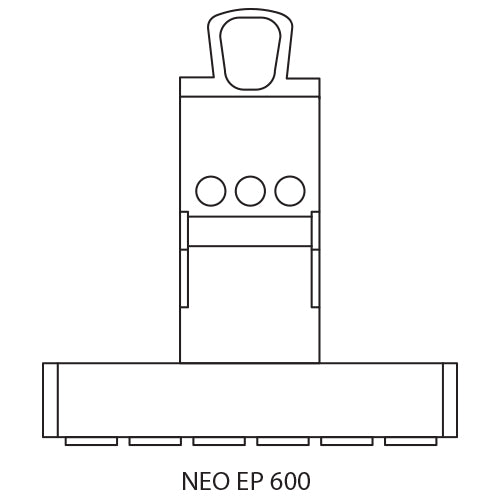

| NEOSQ600 | 95 | 420 | 450 | 6 | 50 x 50 | 52 x 372 | 31 |

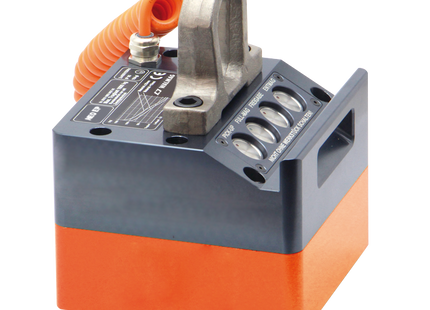

| NEOSQ1000 | 228 | 228 | 295 | 4 | 80 x 80 | 172 x 172 | 39 |

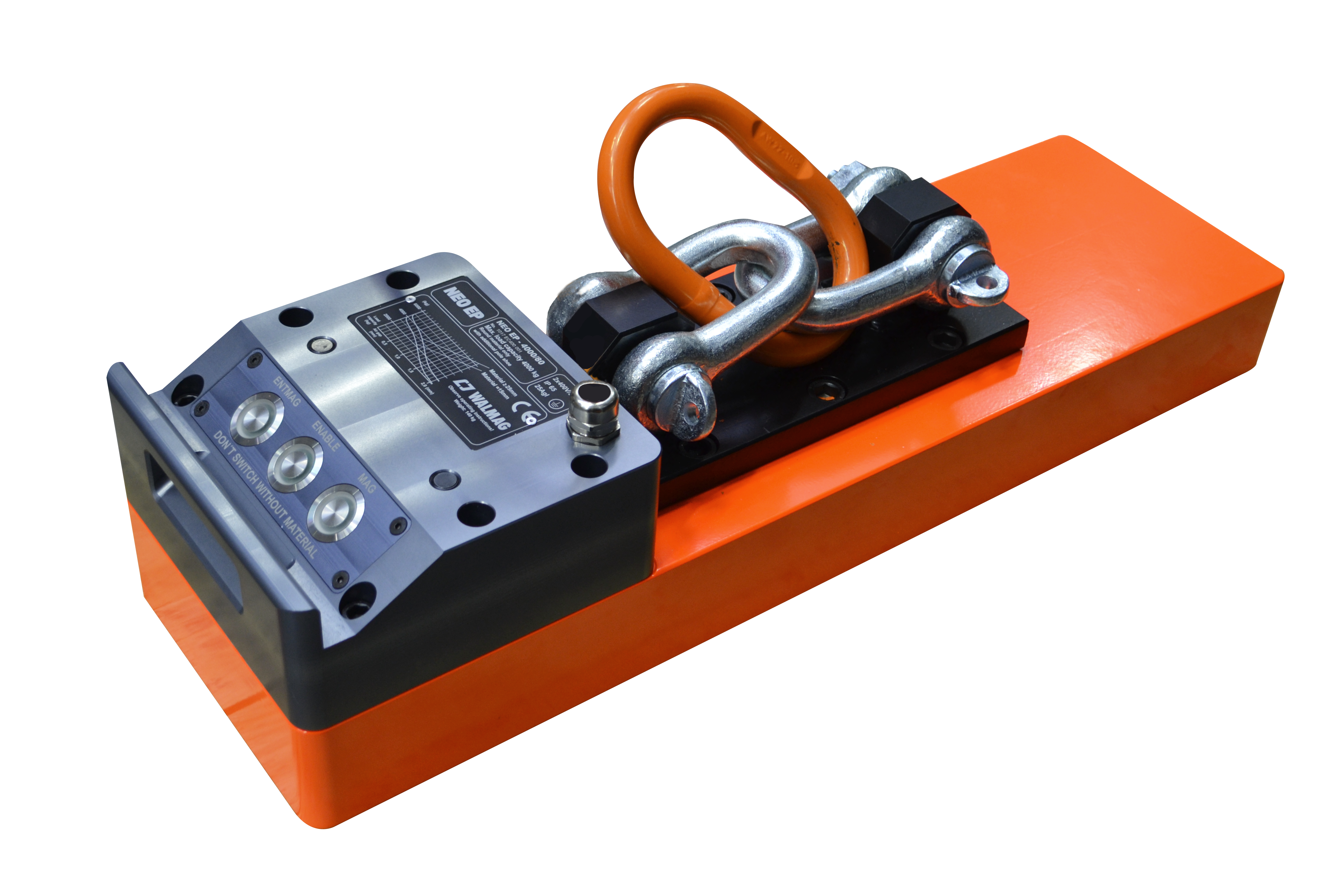

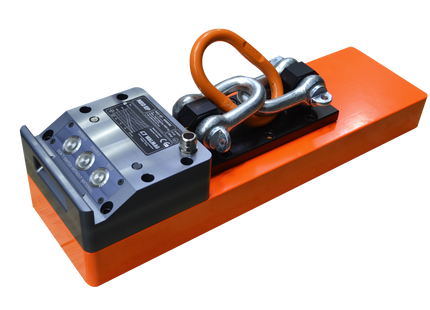

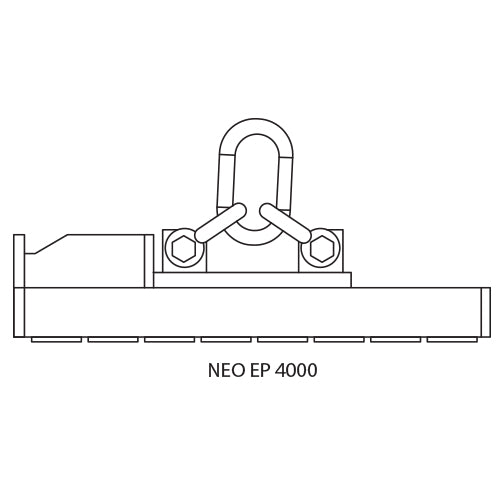

| NEOSQ4000 | 228 | 783 | 295 | 16 | 80 x 80 | 172 x 724 | 132 |
Documents for Download
Maximum Safety with Electro-Permanent Magnet Technology
Comfortable control without physical exertion
High energy efficiency and cost savings
Material protection and precise positioning
Robust design for demanding operations
Do you need help?
Walmag products are in companies such as
Why Walmag?
We've been manufacturingmagnets in Czechia since 1991
We manufactured90,000+ magnets
We service magnetsdirectly in Kroměříž
Our magnets are in morethan 61 countries worldwide
Frequently Asked Questions (FAQ)
Are your products made in the Czech Republic?
Yes, the entire process – from in-house development through design, production, to final assembly and testing – takes place directly in our plant in Kroměříž. This gives us full control over quality and allows us to flexibly tailor products to specific customer requirements.
What is the difference between permanent, electromagnetic, and electro-permanent systems?
Permanent Magnets: Operate without electricity, activated mechanically by a lever. They are safe, mobile, and maintenance-free.
Electromagnets: Generate a magnetic field using coils powered by mains electricity. They possess immense strength, can clamp uneven surfaces, and allow force regulation, but require a constant power supply and backup sources.
Electro-permanent Magnets: Combine the advantages of both systems. They only require electric current for a fraction of a second for activation (magnetization) and deactivation. During operation itself, they do not need current, making them extremely safe even in the event of a power outage and preventing overheating.
Can your lifting magnets also be used for handling materials at high temperatures?
Conventional permanent magnets lose their strength at temperatures above 80 °C. However, for operations with higher temperatures, we offer special series (e.g. HOT lifting magnets) that can safely handle materials with temperatures up to 180 °C.
Why is it necessary to use a demagnetizer after machining?
Ferromagnetic materials retain residual magnetism after being exposed to a magnetic field (e.g., when clamped onto a magnetic chuck). This causes metal chips and dust to stick to the workpiece, which can damage tools or complicate further processing (e.g., painting, welding). Demagnetizers reliably remove this residual magnetism.
Do you provide service and revisions for your products?
Yes, for all our technologies, including older BUX, Walker, and Pilana brand products, we provide complete warranty and post-warranty service, repairs, overhauls, and original spare parts. We also perform mandatory periodic certifications, inspections, and load capacity testing of lifting magnets.
Do you also offer staff training?
Yes. As part of the delivery of our magnetic applications and large systems, we provide professional operator training to ensure that working with magnets is as efficient and safe as possible.
How can I contact you if I am interested in a tailored solution?
You can contact us by e-mail at info@walmag.cz, by phone at +420 573 341 641, or directly contact our regional sales managers for the Czech Republic and abroad, whose contact details can be found in the Contact section of our website.
How is heavy goods (e.g. clamping plates) delivered?
Due to the higher weight of our products, we cooperate with specialized pallet and parcel carriers who ensure safe handling.
How is the safety of lifting magnets purchased from the e-shop guaranteed?
All lifting magnets comply with the strict ČSN EN 13155 standard and operate with a safety factor of 3+. This means that in a pull-off test (the so-called Air Gap test, which simulates a real air gap/dirt in operation), the magnet can lift more than three times its declared maximum load capacity.
