Product description
Detailed description:

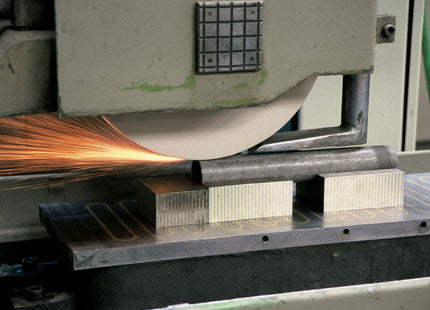

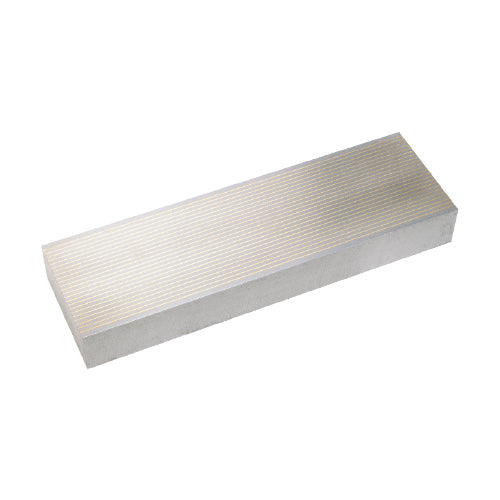

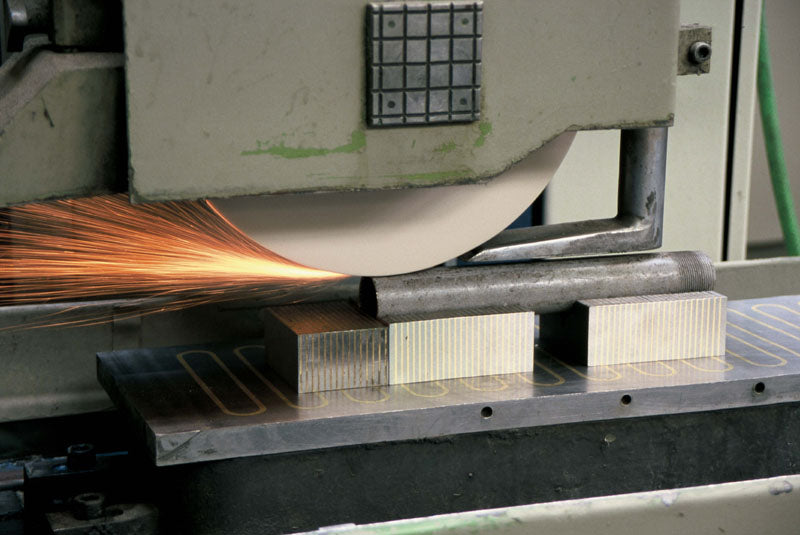

These laminated blocks are made of a magnetically highly conductive material. They are composed of a combination of steel and brass laminations. For grinding, they are placed on the top pole plate of the magnetic chuck and after its activation, magnetic flux can enter freely into the workpiece. The blocks have a very stable construction, whereas individual laminations are not joined with bolts or screws. This allows modification of these laminated blocks according to individual customer requirements.
Important parameters:
- Application: Accessories
- Technology: Conventional
- Block size: from 75 x 75 mm
- Pole pitch: T4 3 + 1 mm
- Poles: Transverse/longitudinal
- Guarantee: 2 years
Use:
- Reduction of the pole plate pitch of the chuck

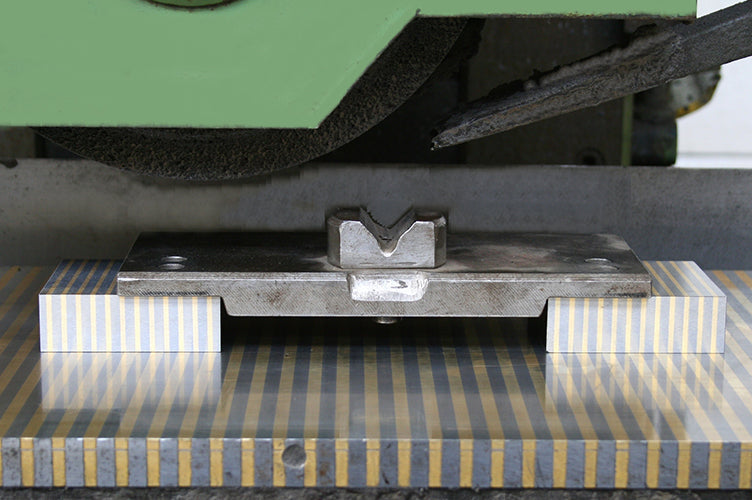

- Expansion of application possibilities of the chuck by clamping irregularly shaped material
Package content:
- Laminated block
Parameters

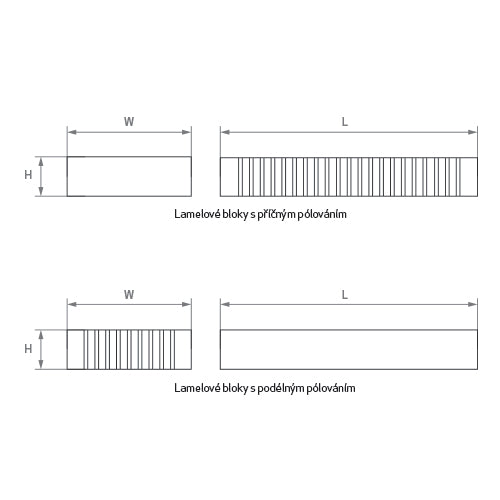

| Model | W (mm) | L (mm) | H (mm) | Poles |
|---|---|---|---|---|
| LB2510075TP | 75 | 100 | 25 | transverse |
| LB25200100TP | 100 | 200 | 25 | transverse |
| LB25300200TP | 200 | 300 | 25 | transverse |
| LB25400300TP | 300 | 400 | 25 | transverse |
| LB257575LP | 75 | 75 | 25 | longitudinal |
| LB2575100LP | 75 | 100 | 25 | longitudinal |
| LB25150200LP | 150 | 200 | 25 | longitudinal |
| LB100650LP | 100 | 650 | 25 | longitudinal |
| LB150200LP | 150 | 200 | 25 | longitudinal |
| LB25150500LP | 150 | 200 | 25 | longitudinal |
| LB25200400LP | 200 | 400 | 25 | longitudinal |
| LB25300300LP | 300 | 300 | 25 | longitudinal |
| LB25400400LP | 400 | 400 | 25 | longitudinal |
| LB25400600LP | 400 | 600 | 25 | longitudinal |
Documents for Download
Laminated blocks for expanding magnetic clamping options
Top construction and precise execution from the manufacturer Walmag
