Product description
Detailed description:

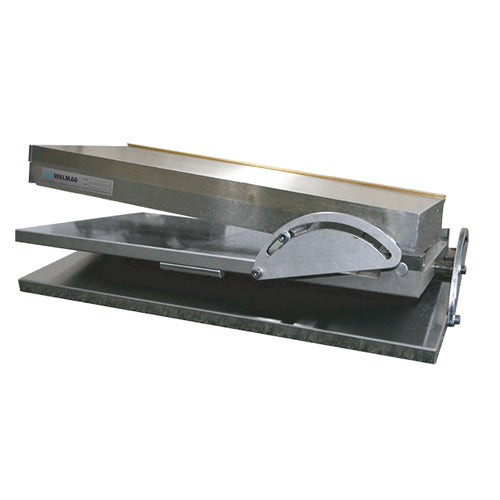

The Fixar compound sine table is a high precise device designed for workpiece clamping during precise angle grinding, electrical discharge machining and measuring. It enhances the efficiency of work during machining because it offers the possibility to tilt the workpiece on both axes with high accuracy.
You set the angles simply by using the end gauges based on the sine principle. Unique design of the bearing along with the hardened base plate and the side guidance provide extreme accuracy even after a long period of use.
The Neomicro magnetic chuck is part of the transverse sine table as it is stable and has a high holding force without deformation of the workpiece up to 100 N/cm2.
Important parameters:
- Application: Grinding, measuring, EDM
- Technology: Permanent
- Holding force: 100 N/cm2
- Min. workpiece size: 4 x 4 x 1 mm
- Poles: Transverse
- Regrinding limit: 7 mm
- Pole pitch: T1.9 1.4+0.5 mm (steel/brass)
- Guarantee: 2 years
Additional information:
The Fixar compound sine table allows tilting on both axes at the same time. If you only need tilting on one axis (longitudinal or transverse), have a look at the Fixar simple sine table.
Scope of supply:
- Sine table
- Allen keys
- Table for quick angle setting
- Instructions for use
Use:
- Accurate angle surface grinding Electrical discharge machining – EDM
- Measuring

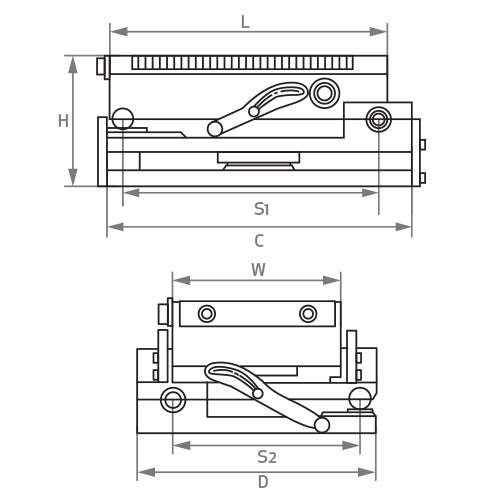

Parameters
| Model | W (mm) | L (mm) | H (mm) | C x D (mm) | S (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| SINEC100175 | 100 | 175 | 104 | 210 x 140 | 165/110 | 15 |
| SINEC130255 | 130 | 255 | 120 | 290 x 170 | 245/140 | 32 |
| SINEC150300 | 150 | 300 | 123 | 335 x 190 | 340/160 | 49,5 |
| SINEC200400 | 200 | 400 | 124 | 435 x 240 | 390/210 | 73 |
Documents for Download
Two-axis angular machining with Fixar cross sine table
Maximum structural rigidity and excellent permanent clamping
