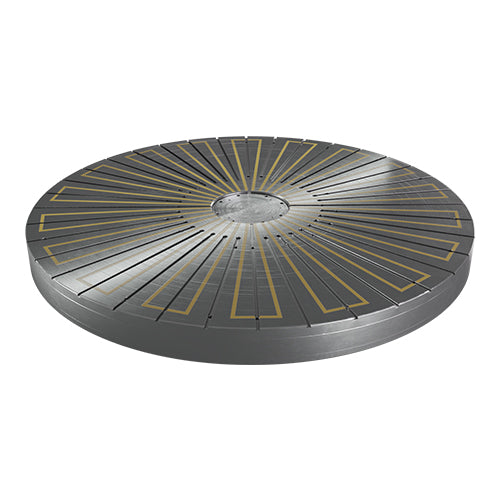

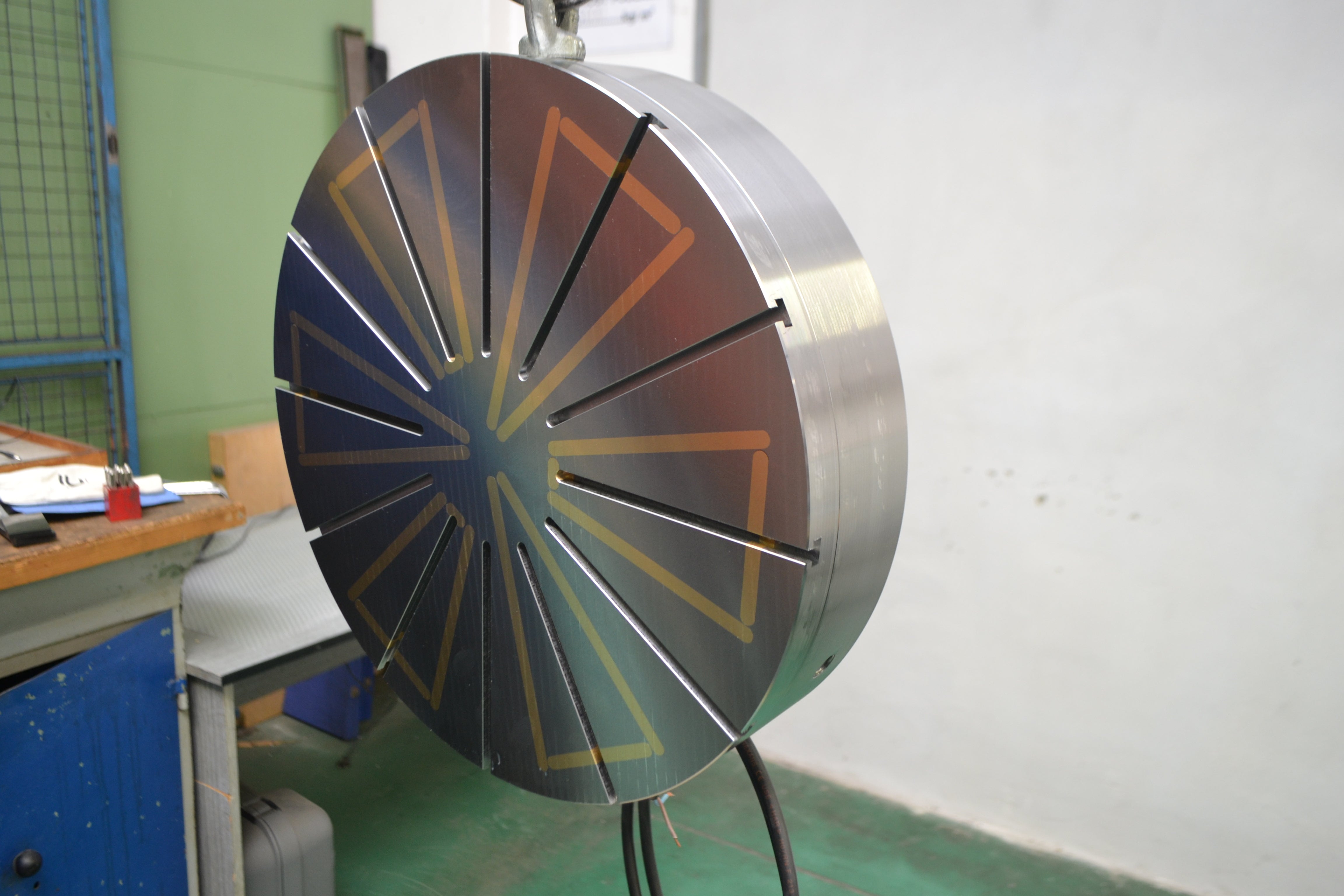

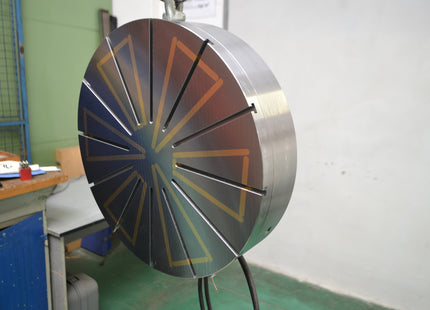

Electromagnetic chuck Circu EM
Electromagnetic chuck Circu EM
Do you need help?
Product description
Important parameters:
- Technology: Electromagnet
- Holding force: 120 N/cm2
- Poles: radial
- Regrinding limit: 8 mm
- Guarantee: 2 years
Additional information:
The pole plate can be equipped with T-slots for mounting pole extensions on request. This provides free access to the workpiece for machining the outside, inside diameter and front per one clamping, or it is possible to drill through the workpiece body. Power for the chuck is provided by a suitable control unit. The chuck can be connected via the slip ring in the machine tool spindle, or through the connector located directly on the magnetic chuck.
Use:

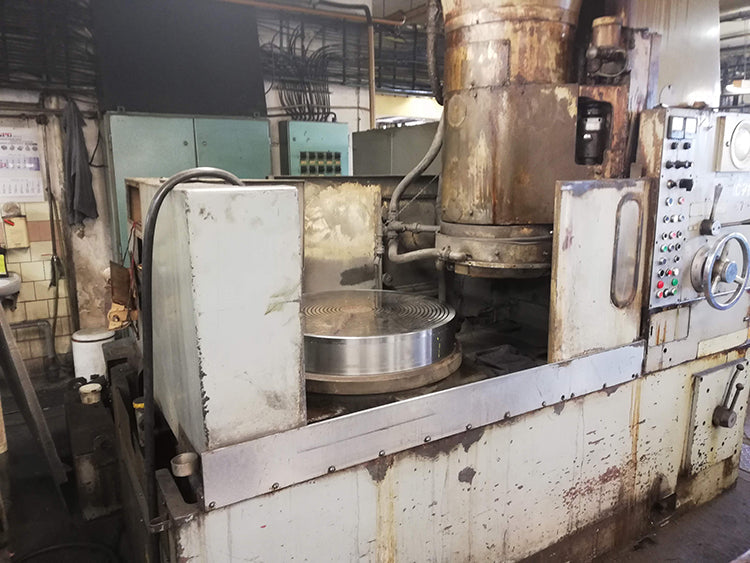

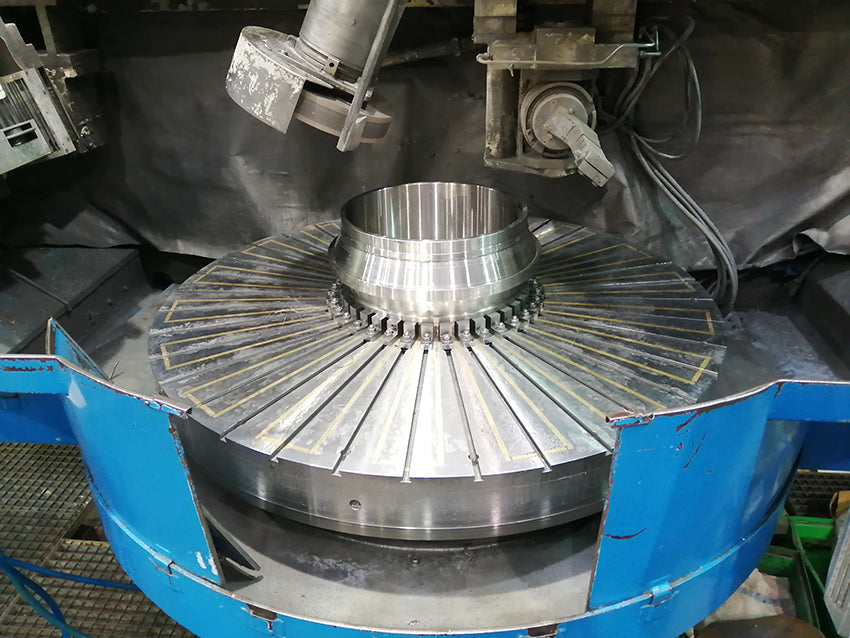

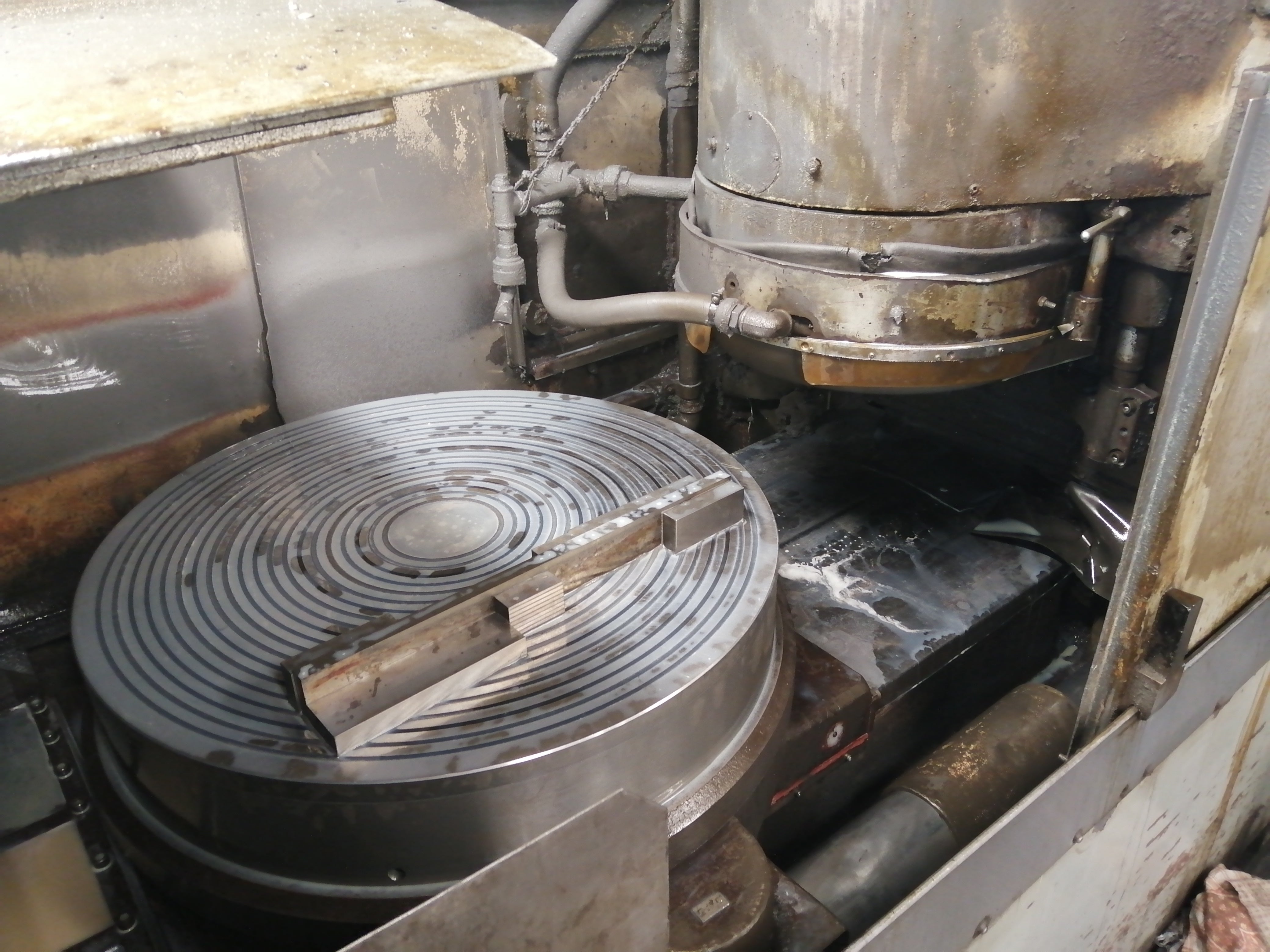

- machining external and internal surfaces of round and ring shaped workpieces on vertical grinders
- turning

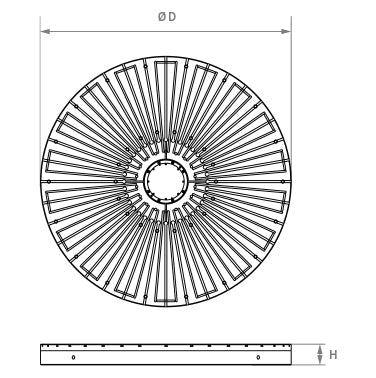

| Catalog number | D (mm) | H (mm) | Weight (kg) | Voltage (V) |
|---|---|---|---|---|
| Circu EM 400 | 400 | 90 | 76 | 110 |
| Circu EM 500 | 500 | 90 | 120 | 110 |
| Circu EM 600 | 600 | 100 | 195 | 110 |
| Circu EM 700 | 700 | 100 | 265 | 110 |
| Circu EM 800 | 800 | 100 | 365 | 110 |
| Circu EM 1000 | 1000 | 100 | 550 | 110 |
| Circu EM 1250 | 1250 | 123 | 990 | 110 |
| Circu EM 1500 | 1500 | 120 | 1550 | 110 |
Documents for Download
Circu EM Circular Electromagnet for Demanding Turning and Vertical Turning Lathe Applications
Robust construction with concentric pole configuration for maximum stability
