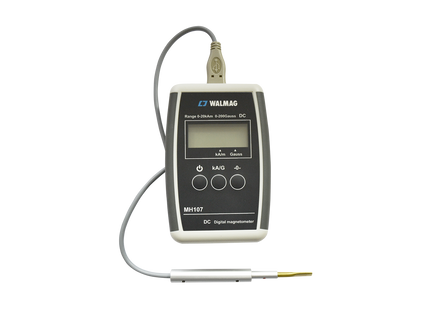

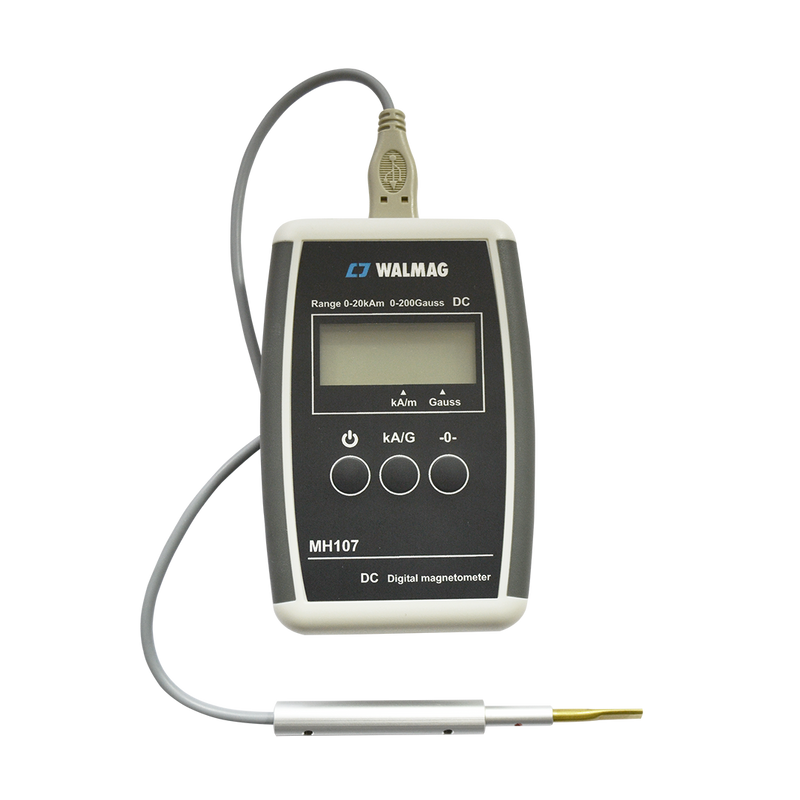

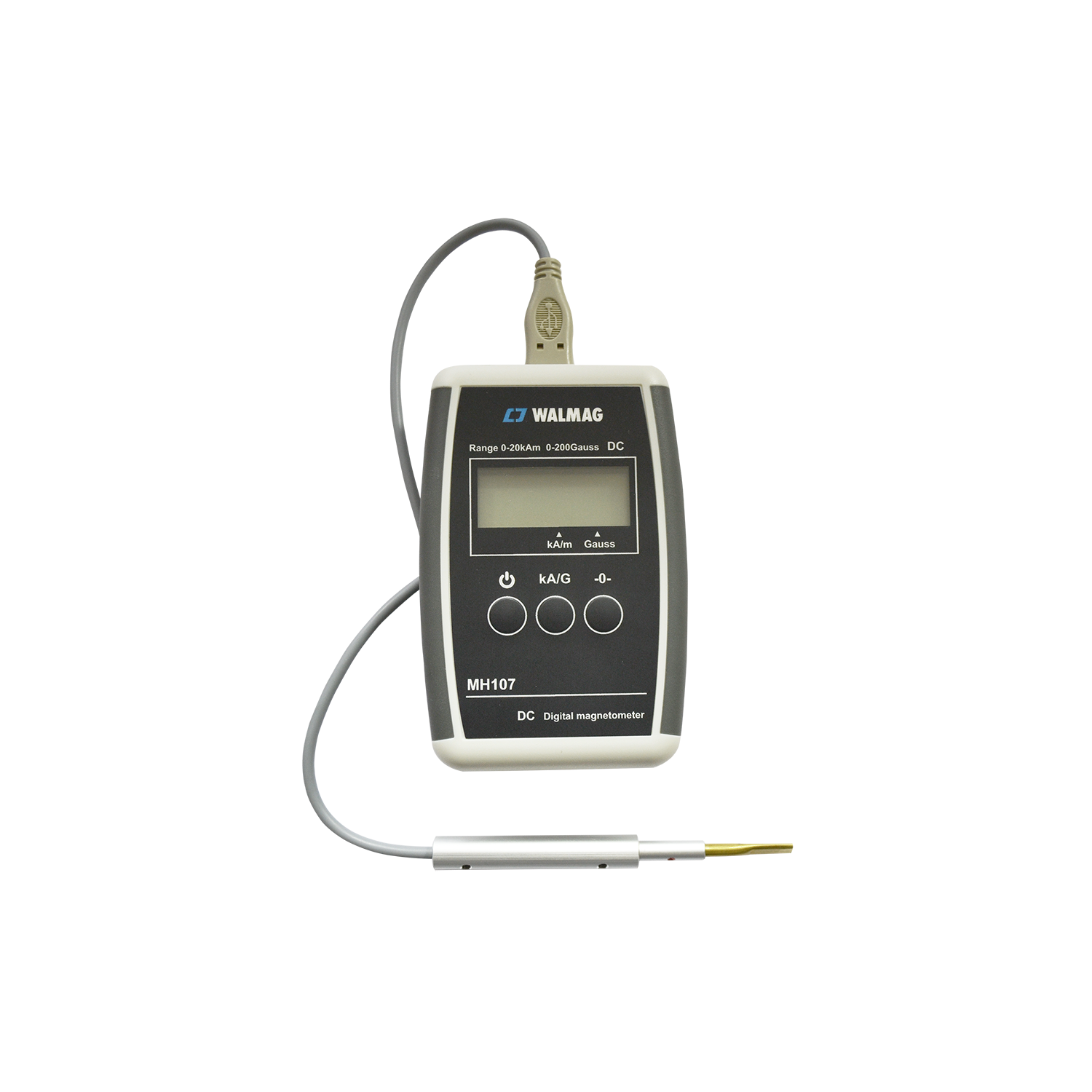

Digital meter for measuring magnetism MH-107
Digital meter for measuring magnetism MH-107
Do you need help?
Product description
The MH-107 digital residual magnetism meter is used to measure residual magnetism in workpieces that have been exposed to magnetic clamping or other magnetic fields. A high residual magnetic field in a semi-finished product can cause problems during further processing (e.g. welding, machining, etc.) and, in finished products, can affect the functionality of certain equipment; therefore, it is sometimes necessary to monitor the strength of the residual magnetic field. If the residual magnetism is too high, you can remove it using our demagnetisers.
Key specifications:
- Application: Measurement of residual magnetism
- Technology: Electronic device (battery-powered)
- Battery life: up to 130 hours
- Measuring range: 0–3000.0 mT
- Units: Gauss or kA/m
- Warranty: 2 years
Uses:
- Checking residual magnetism on workpieces and components
- Verifying the effectiveness of demagnetisation after using demagnetisation equipment
- Measuring the magnetic field following magnetic clamping or other manufacturing operations
Package contents:
- Measuring instrument
- Measuring probe
- Set of alkaline batteries
- User manual
Parameters
| Model | W (mm) | L (mm) | H (mm) | Measuring range |
|---|---|---|---|---|
| MH-107 | 79 | 119 | 24 | 0 - 199,9 G |
Documents for Download
Maximum precision in residual magnetism inspection
Intuitive operation and reliability in the field and the laboratory
