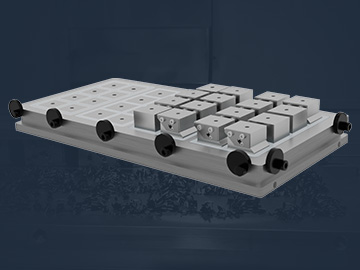

Mastermill 50 - electro-permanent magnetic chuck suitable for milling

The Mastermill 50 magnetic chuck is suitable for milling and drilling small and large workpieces. You can machine parts from up to 5 sides with the help of additional pole extensions. The standard version of this chuck with stainless steel/pole plate can also be used for dry machining or with a minimum of coolant. This chuck achieves a holding force of up to 170 N/cm2, the minimum workpiece thickness for quality machining is 12 mm and the regrinding limit is 5 mm. You can choose several above-standard modifications, so do not hesitate to contact us about this magnetic chuck.
